Ti-40 Automatic Potential Titrator

Ti-40 Automatic Potential Titrator

The potentiodynamic titrator is a common analytical instrument designed for capacity analysis based on the principle of potentiometry....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

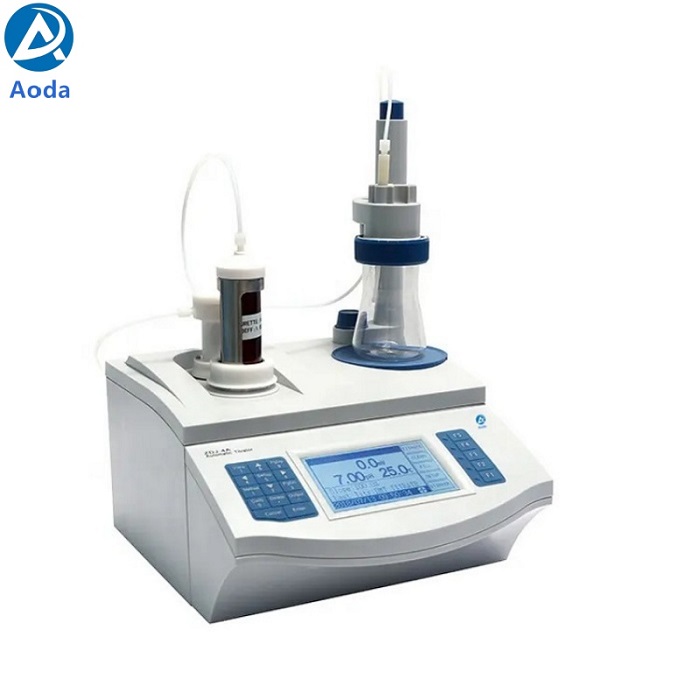

Ti-40 Automatic Potential Titrator

INESA Automatic potentital titrator GENERAL FEATURES

  • LCD display screen and smart guide system.

  • Titration methods, curves and results are displayed in detail.

  • Replaceable burette with high-accuracy (10 ml or 20 ml selectable).

  • Support the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).

  • pH calibration and measurement are supported.

  • Store up to 50 titration data sets (GLP-compliant) and 1 latest set of titration curve.

  • Data can be easily transferred to printer via RS-232 communication interface..

  • Titrator can be controlled by computer via USB or RS-232 communication interface.

INESA Standard including of Automatic potential titrator

  • 10ml burette

  • 232-01 referenc electrode

  • 213-01 platinum electrode

  • 216-01 silver electrode

  • 217-01 referenc electrode

  • 231-01 pH indicator electrode

  • T-818-B-6 Temperature probe

  • NIST pH standard solution(4.01, 7.00, 10.01) ,50ml/vial

Specifications

Model

Ti-40 Automatic potentital titrator

Burette

Repeatability

≤0.2%

Accuracy

10ml Burette: ±0.025ml,

20ml Burette: ±0.035ml

Mechanical Unit

Resolution

1/14000

Measuring Unit

Range

(-1800.0~1800.0) mV,

(0.00~14.00)pH

Resolutions

0.1mV,

0.01pH

Accuracy

pH: ±0.01pH,

mV: ±0.05%FS

Fluctuation

±0.3mV/3h

Temp. Compensation

Range

(-5.0~105.0)

Resolutions

0.1 ℃

Accuracy

±0.3 ℃

General

Power Supply

AC Adapter, 100-240V AC input, DC24V output

Dimensions

340×400×400 mm

Weight

10 kg

Dimensions (Carton)

5449480 mm

Weight (Gross)

12 kg
