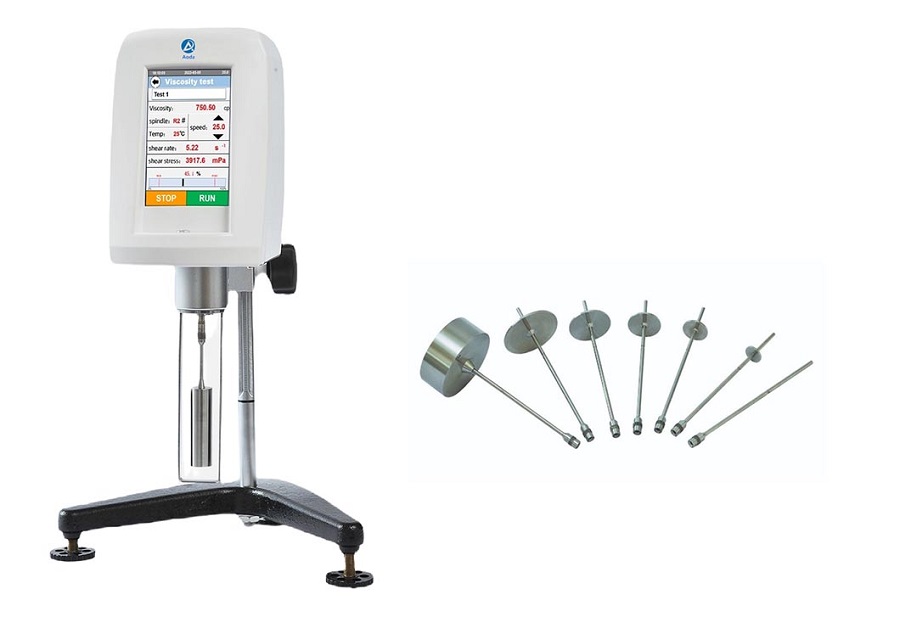

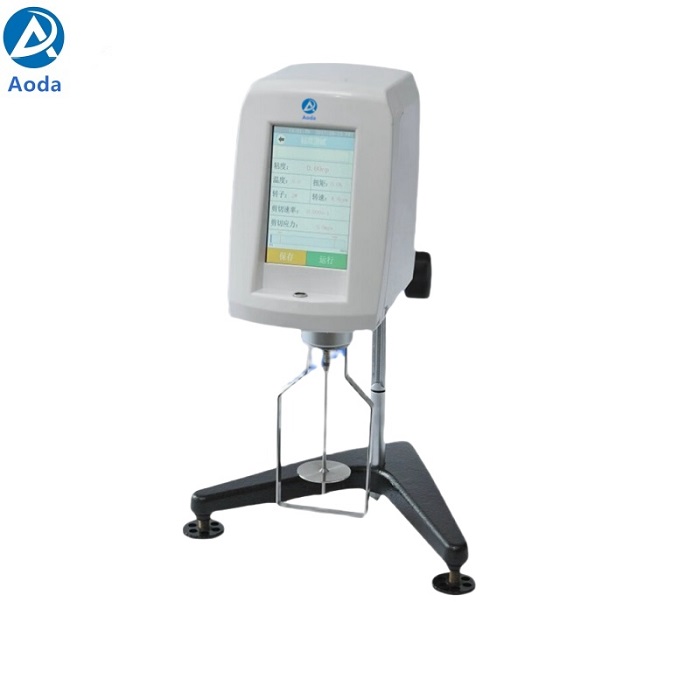

AODA DV2T Brookfield viscometer

AODA DV2T Brookfield viscometer

DV2T Brookfield viscometer adopts high-performance imported microcomputer chip, importedstepping motor and other key components, 5-inch touch screen display operation,program setting, automatic control, timing measurement, automatic seanning andother functions;

It can measure the absolute viscosity of Newtonian liquid or theapparent viscosity of non-Newtonian liquid, The :nstrument has high sensitivity, highprecision,accurate and reliable test data, and good repeatability.

v Equipped with a 5-inch ultra-large touch screen, the display and operation are clear and convenient

v Thanks to the excellent spring sensor, the measurement accuracy can reach ±1% of the full scale, and the repeatability is ±0.2% of the full scale

v The speed can be infinitely adjusted

v The display content is rich: dynamic viscosity (graph), kinematic viscosity, temperature (graph), shear rate, shear stress, torque (graph), full-scale measurement range, date, time, etc.

v High torque, low noise stepper motor drive system

v High-sensitivity front level, more convenient observation

v The built-in storage chip in the body can store up to 30 sets of test records, which can be viewed at any time in the instrument display

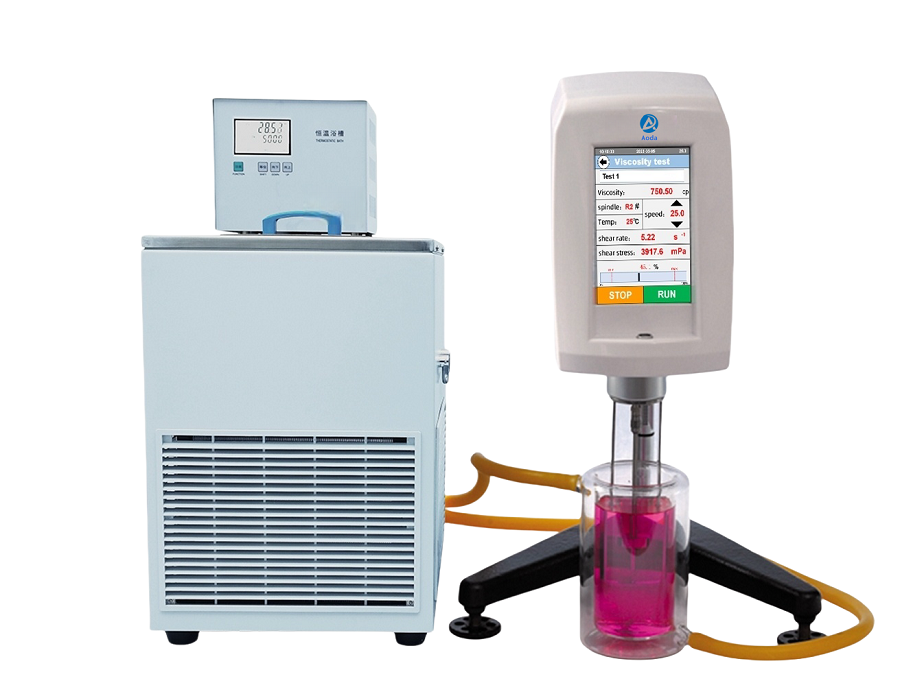

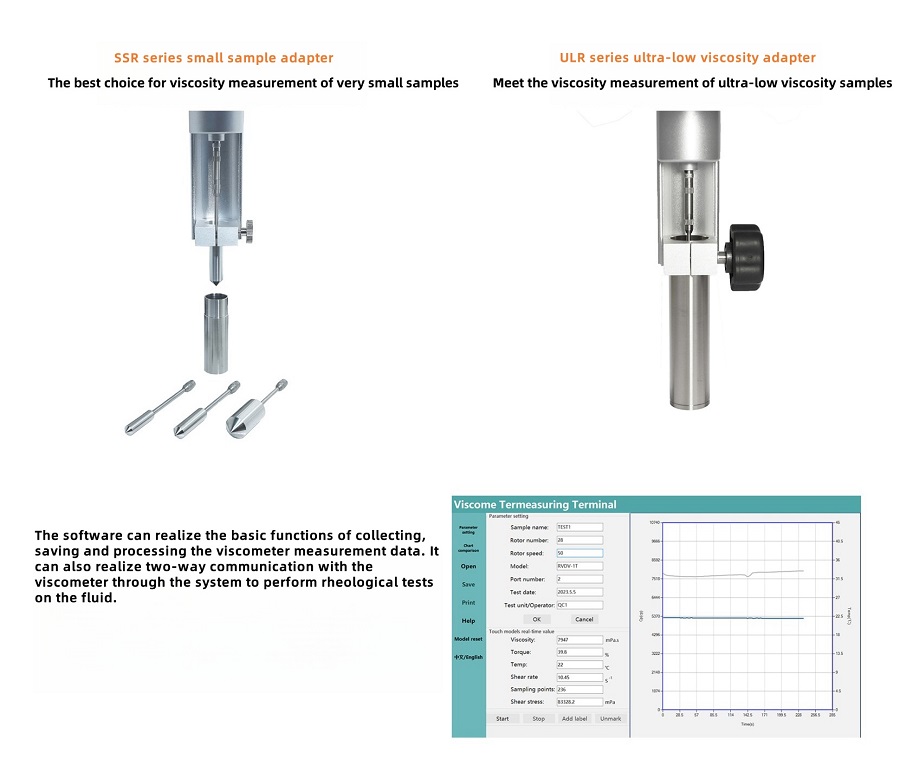

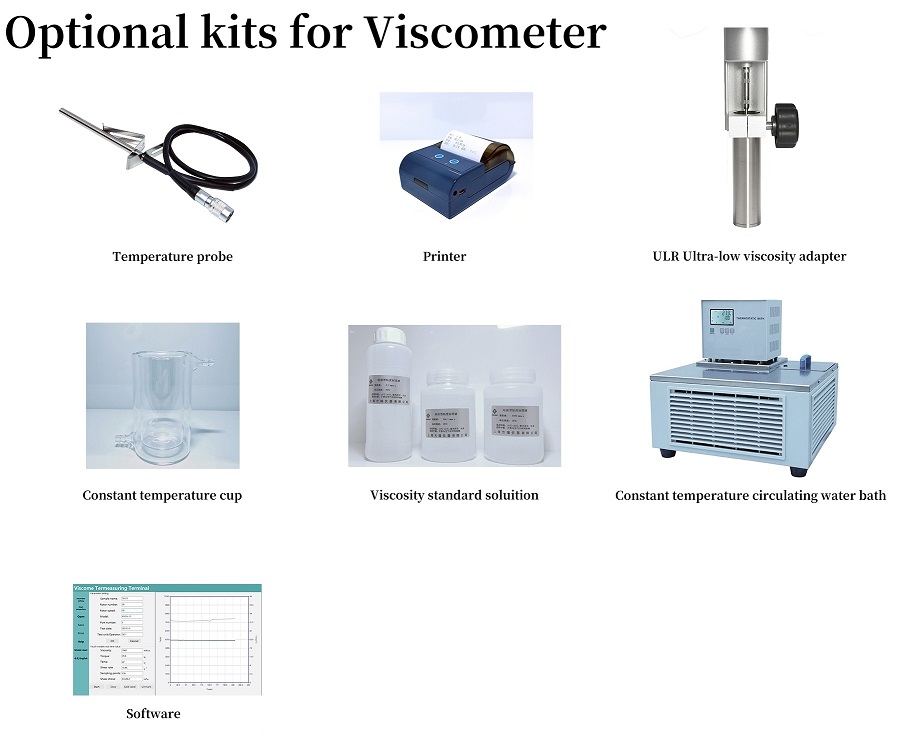

v Rich expansion interfaces and accessories: high-precision temperature probe, constant temperature bath dedicated to viscometer, constant temperature cup micro printer, standard viscosity liquid, etc. to improve the measurement adaptability of the instrument

Rotational Brookfield viscometers are used in coatings, daily chemicals, pharmaceuticals, food, petroleum industry, inks, electronics industry (solder paste, silver paste),

composite materials (resins and molding), lubricants, adhesives, asphalt, ceramics, textiles, blood, water-coal slurry, and others (chemicals, biology, papermaking, glass,

gelatin, thickeners), etc.

Meet the standards:

u GB/T 11145-1989 Low temperature viscosity determination method for automotive fluid lubricants (Brokefeldt viscometer method)

u GB/T 2794-2013 Determination of viscosity of adhesives Single cylinder rotational viscometer method

u GB/T 5561-1994 Surfactants Method for determination of viscosity and flow properties using rotational viscometer

u GB/T 15357-2014 Surfactants and detergents Determination of viscosity and flow properties of liquid products by rotational viscometer

u HG/T 3323-2008 Determination of viscosity of rubber slurry (rotational viscometer method)

u JB/T 9357-1999 General technical conditions for laboratory rotational viscometers

u SY/T 0520-2008 Determination of crude oil viscosity Rotational viscometer balance method

u SY/T 6978-2014 Drilling fluid rotational viscometer calibration method

u SY/T7 547-2014 Determination of yield value of crude oil Rotational viscometer

u T/JSJTQX03-2009 Test procedure for 60°C rotational viscosity of highway asphalt

u AS 2341.4-1994 Test methods for asphalt and related road marking products Part 4: Determination of dynamic viscosity by rotational viscometer method

u AS 2341.7-1993 Test methods for asphalt and related road marking products Part 7: Determination of dynamic viscosity by rotational viscometer method

u ASTM D4402/D4402M-2015 Test method for determination of viscosity of asphalt at high temperature by rotational viscometer
