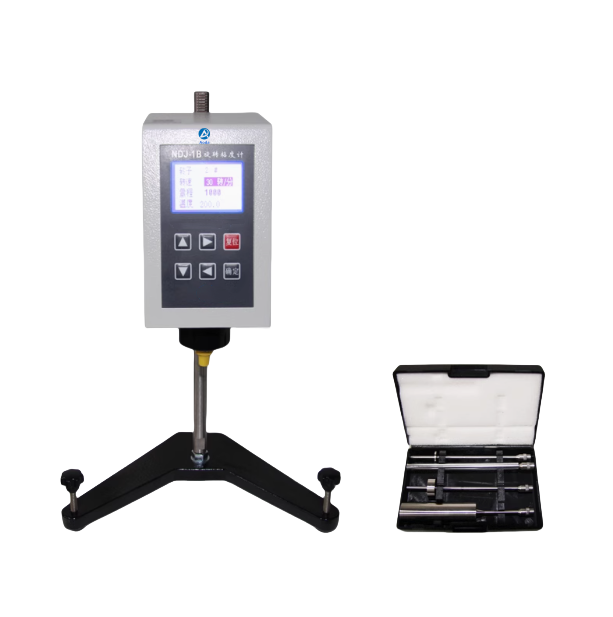

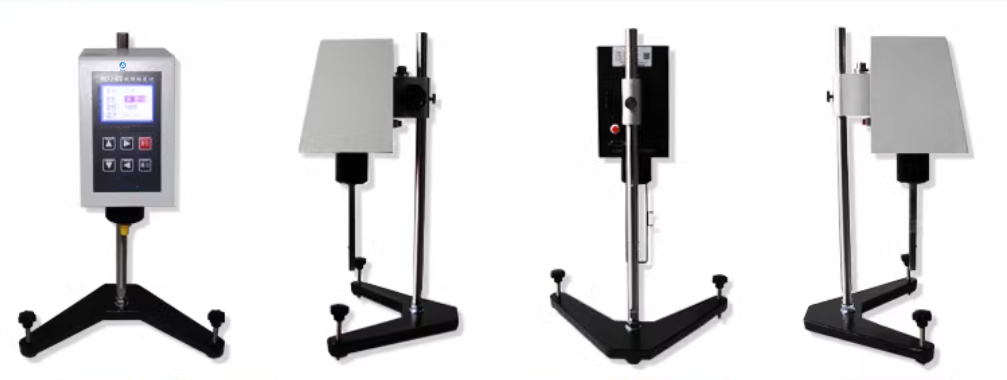

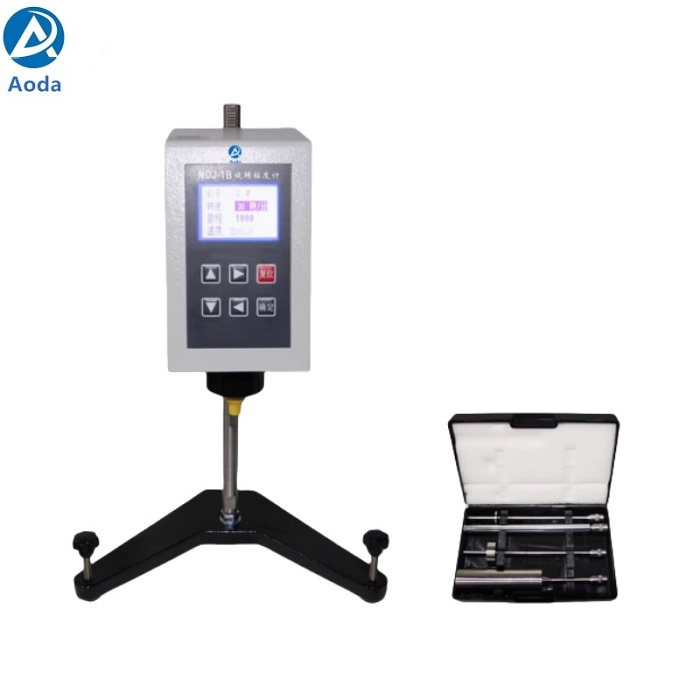

Aoda NDJ-1B Rotational Viscometer

Aoda NDJ-1B Rotational Viscometer

Rotational viscometers are used to measure the viscosity of a wide range of fluids from different industries. Widely applicable to various fluid viscosities such as oils, paints, plastics, drugs, coatings, adhesives, detergents, etc.

Technical parameters

1. Measurement range: 10 mPa•s～2000000 mPa•s

2. Spindle: No.1～No.4, four spindles

3. Rotation speed: 0.3 RPM, 0.6 RPM, 1.5 RPM, 3 RPM,

6 RPM, 12 RPM, 30 RPM, and 60 RPM; 8 grades in total

4. Measuring accuracy: ±1% (F•S)

5. Power supply: AC 220 V±10%, 50 Hz±10%;

6. Ambient temperature: 5 ℃～35 ℃;

7. Relative humidity: ≤80%;

8.Printing output:needle printer

9.Comunication port:RS232 port

Optional parts

1. HWY-10 Circulation water bath

2. Double-layer sample cup

3. No.0 spindle

4. Viscosity oil standards

5. Small sample adapter
