Aoda Dry shipper series liquid nitrogen tank
Dry shipper series liquid nitrogen tank is suitable for cryogenic environment (vapor storage at temperatures below -190 ℃) transportation for samples....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda Dry shipper series liquid nitrogen tank
Dry shipper series liquid nitrogen tank is suitable for cryogenic environment (vapor storage at temperatures below -190 ℃) transportation for samples. It could avoid the risk of the liquid nitrogen releasing during transportation, especially designed for short-term air transport. The internal liquid nitrogen adsorbent, can absorb and save liquid nitrogen, even if the container falls down, liquid nitrogen would not pour out. It uses special stainless steel mesh to separate storage space and absorption material, to avoid liquid nitrogen absorption material mixed into the sample. Mainly used for laboratory users and short-term delivery of small number samples.
① Vapor cryogenic storage;
② Fast liquid nitrogen filling;
③ High strength aluminum construction;
④ Lockable lid;
⑤ No liquid nitrogen overflow;
⑥ Straws or vails storage is optional;
⑦ CE certified;
⑧ Three years vacuum warranty
Product Advantages:
●No liquid nitrogen overflow
There is a liquid nitrogen adsorbent inside to absorb and store the liquid nitrogen, and no liquid nitrogen will overflow even if the container is dumped.
●Stainless steel mesh sieve segmented storage
Contains special stainless steel mesh screen to separate storage space and liquid nitrogen absorber to avoid mixing liquid nitrogen absorber material into the sample.
●Multiple model selection

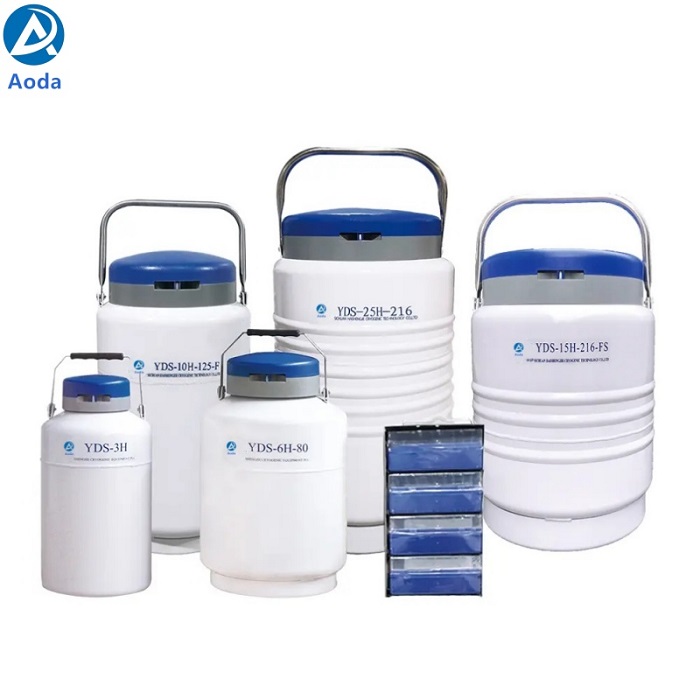

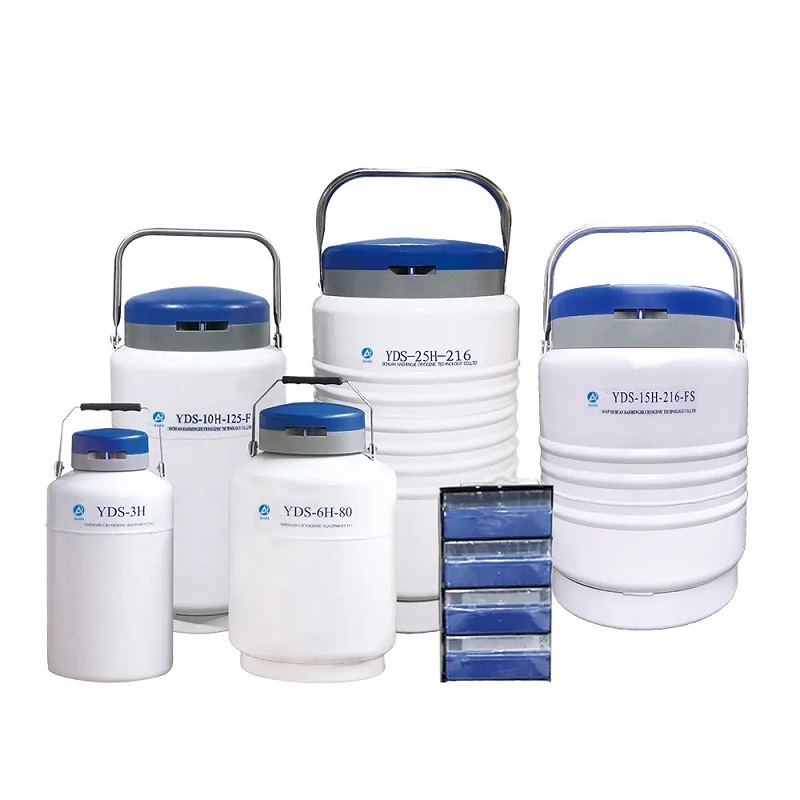

Capacity from 3 to 25 liters, a total of 5 models are available to meet user needs.
MODEL | YDS-3H | YDS-6H-80 | YDS-10H-125 | YDS-25H-216 | ||
Performance | ||||||
Effective Capacity (L) | 1.3 | 2.9 | 3.4 | 9 | ||
Weight Empty (kg) | 3.2 | 4.9 | 6.7 | 15 | ||
Neck Opening (mm) | 50 | 80 | 125 | 216 | ||
Outer Diameter (mm) | 223 | 300 | 300 | 394 | ||
Overall Height (mm) | 435 | 487 | 625 | 716 | ||
Static Evaporation Rate (L/day) | 0.16 | 0.20 | 0.43 | 0.89 | ||
Static Holding Time (day) | 20 | 37 | 23 | 29 | ||
Effective Shelf Life | 8 | 14 | 8 | 10 | ||
Maximum Storage Capacity | ||||||
Canister | Canister Diameter (mm) | 38 | 63 | 97 | — | |
Canister Height (mm) | 120 | 120 | 120 | — | ||
Number of Canisters (ea) | 1 | 1 | 1 | — | ||
Straws Capacity | 0.5ml (ea) | 132 | 374 | 854 | — | |
(120 mm canister) | 0.25ml (ea) | 298 | 837 | 1940 | — | |
Racksand VialsBoxes | Number of Racks (ea) | — | — | 1 | 1 | |
Vial Boxes Dimension (mm) | — | — | 76×76 | 134 x 134 | ||
Boxes per Rack (ea) | — | — | 4 | 5 | ||
1.2; 1.8 & 2 ml Vials (Internally Threaded) | — | — | 100 | 500 | ||
25 mlblood bag | Number of Racks (ea) | — | — | 1 | 1 | |
Stages per Rack (ea) | — | — | 1 | 2 | ||
Boxes per Stage (ea) | — | — | 3 | 15 | ||
Blood Bag Capacity (ea) | — | — | 3 | 30 | ||
50 mlblood bag | Number of Racks (ea) | — | — | 1 | 1 | |
Stages per Rack (ea) | — | — | 1 | 1 | ||
Boxes per Stage (ea) | — | — | 3 | 15 | ||
Blood Bag Capacity (ea) | — | — | 3 | 15 | ||
Optional Accessories | ||||||
Lockable Lid | √ | √ | √ | √ | ||
PU Bag | √ | √ | — | — | ||
SmartCap | √ | √ | √ | √ |
