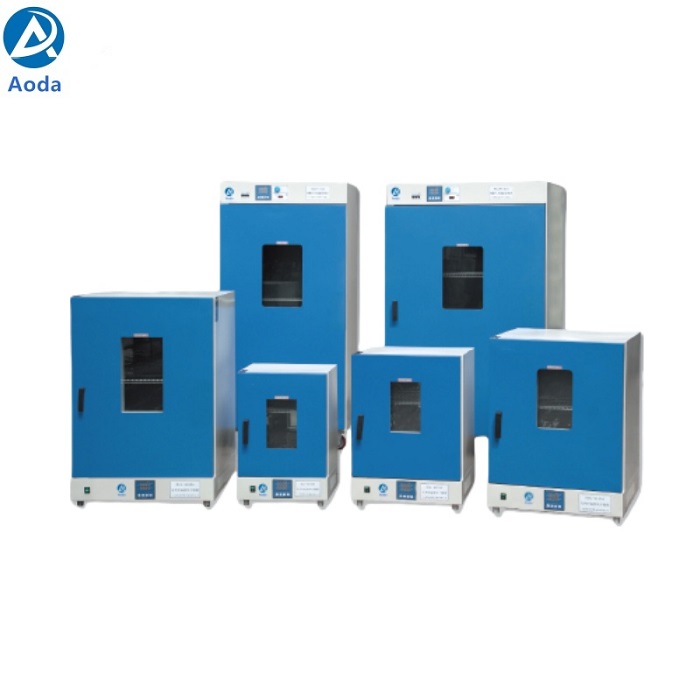

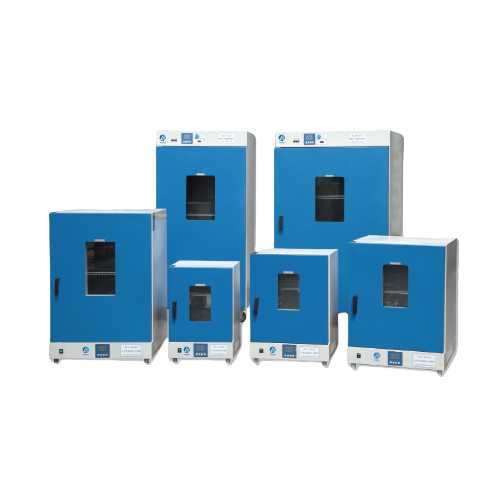

Aoda AGG Vertical Electric Heating Blast Drying Oven
Vertical electric heating blast drying oven mainly used for industrial and mining enterprises, laboratories, scientific research units, etc. for drying, baking, melting wax, sterilization.
1. Adopting LED digital display with temperature control and timing function to highlight the microcomputer temperature controller, the temperature control is accurate and reliable.
2. The box body is made of mirror stainless steel or drawing board material by argon arc welding. The box body is made of high quality steel plate material, which is beautiful and novel.
3. Vertical and vertical forced convection, imported original fan, uniform temperature in the studio.
4. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit, ensuring that the experiment runs safely without accidents. (optional)
5. With the "D" series is an intelligent ten-segment programmable LCD controller.
Model | Vertical Drying Oven AGG series | |||||||
9030A 9030AD | 9036A 9036AD | 9070A 9070AD | 9076A 9076AD | 9140A 9140AD | 9146A 9146AD | 9240A 9240AD | 9246A 9246AD | |
Voltage | 220V 50Hz | |||||||
Temp. controlling range | NGG-9000 series：RT+10℃～200℃ NGG-9006 series：RT+10℃～300℃ | |||||||
Temp. resolution | 0.1℃ | |||||||
Constant temp. wave | ±1℃ | |||||||
Power input | 600W/970W | 1150W/1600W | 1600W/2100W | 2100W/2500W | ||||
Work environment temp. | 5℃～40℃ | |||||||
Inner chamber size(mm) | 300×300×350 | 400×400×450 | 450×550×550 | 500×600×750 | ||||
External size(mm) | 445×470×705 | 550×600×800 | 640×700×905 | 690×780×1100 | ||||
Standard carrier | 2pcs | |||||||
Timing | 1～9999 minutes | |||||||
Model | Vertical Drying Oven AGG series | ||||
9420A 9420AD | 9426A 9426AD | 9620A 9620AD | 9626A 9626AD | 9920A 9920AD | |
Voltage | 380V 50Hz | ||||
Temp. controlling range | NGG-9000 series：RT+10℃～200℃ NGG-9006 series：RT+10℃～300℃ | ||||
Temp. resolution | 0.1℃ | ||||
Constant temp. wave | ±1℃ | ||||
Power input | 3200W/3300W | 4100W/4200W | 6000W | ||
Work environment temp. | 5℃～40℃ | ||||
Inner chamber size(mm) | 600×550×1300 | 800×600×1300 | 1000*600*1600 | ||
External size(mm) | 780×760×1800 | 980×800×1800 | 1140*800*2150 | ||
Standard carrier | 3pcs | 4pcs | |||
Timing | 1～9999 minutes | ||||
