Aoda HFD series Home use Food Freeze dryer
home use vacuum freeze dryer is a small vacuum freeze dryer.Apply to the family, online shop a small amount of freeze-dried use, widely adapted to fruits, meat, vegetables, Chinese herbal medicines, health products, etc. freeze-drying....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda HFD series Home use Food Freeze dryer
HFD series home use Food freeze dryer is a small vacuum freeze dryer.Apply to the family, online shop a small amount of freeze-dried use, widely adapted to fruits, meat, vegetables, Chinese herbal medicines, health products, etc. freeze-drying.
Food Freeze dryer feature
1. Perfect appearance, compact size;
2. Touch screen operation, one key to start, and automatic freeze drying process, easy and convenient;
3. Key components with imported brands, small noise, large capacity, high quality and high performance;
4. Advanced system, with low operating current and low energy consumption;
5. 304 stainless steel food tray and inside liner, safety and easy clean;
6. Transparent organic glass door, the direct observation of food processing;
Food Freeze dryer specification
| Model | HFD-1 | HFD-4 | HFD-6 | HFD-8 | HFD-15 |
| Freeze dried area | 0.1m2 | 0.4m2 | 0.6m2 | 0.92m2 | 1.45m2 |
| Cold trap temperature | -50℃ | -50℃ | -50℃ | -50℃ | -60℃ |
| Processing capacity | 1-2kg/batch | 4-6kg/batch | 6-8kg/batch | 10-12kg/batch | 18-20kg/batch |
| Ultimate vacuum | Below 2Pa | Below 2Pa | Below 2Pa | Below 2Pa | Below 2Pa |
| Material tray size | 145*275mm | 200*425mm | 315*430mm | 265*430mm | 265*780mm |
| Number of material trays | 3 pieces | 4 pieces | 4 pieces | 8 pieces | 7 pieces |
| Materials tray spacing | 43mm | 45mm | 70mm | 38mm | 43mm |
| Pumping speed | 2-4L/S | 2-4L/S | 2-4L/S | 2-4L/S | 2-4L/S |
| Water harvesting ability | 3kg/24h | 4kg/24h | 6kg/24h | 10kg/24h | 18kg/24h |
| Operating noise | ≤60dB | ≤60dB | ≤60dB | ≤60dB | ≤60dB |
| Supply voltage | 220V/50Hz(customizable 110V or 380V) | 220V/50Hz(customizable 110V or 380V) | 220V/50Hz(customizable 110V or 380V) | 220V/50Hz(customizable 110V or 380V) | 220V/50Hz(customizable 110V or 380V) |
| Machine dimensions | 450*500*825mm | 500*640*900mm | 680*640*1180mm | 680*640*1180mm | 680*990*1180mm |
| Net weight | 73kg | 84kg | 125kg | 130kg | 186kg |
| Package size | 570*680*1170mm | 630*840*1260mm | 820*800*1540mm | 820*800*1540mm | 820*1170*1600mm |
| Total weight with packaging | 113kg | 139kg | 197kg | 203kg | 281kg |
| Whole machine power | 1100w | 1500w | 2000w | 2500w | 3500w |

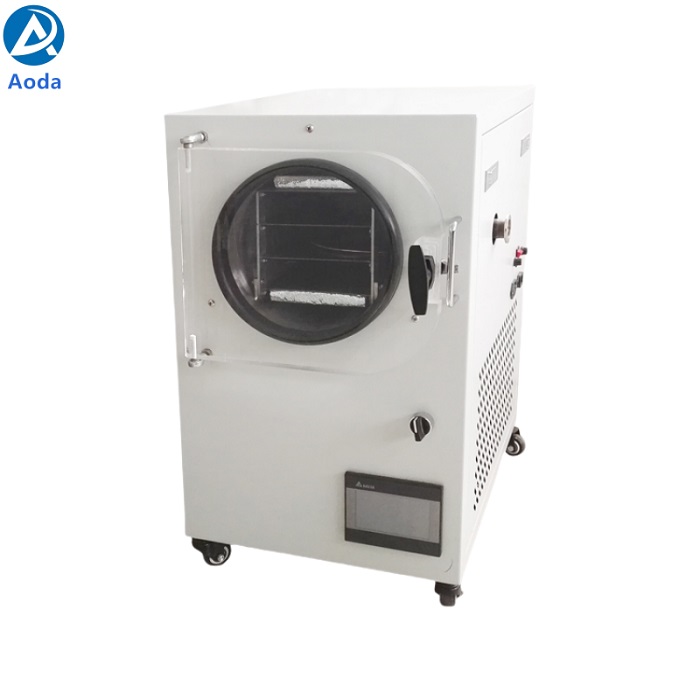

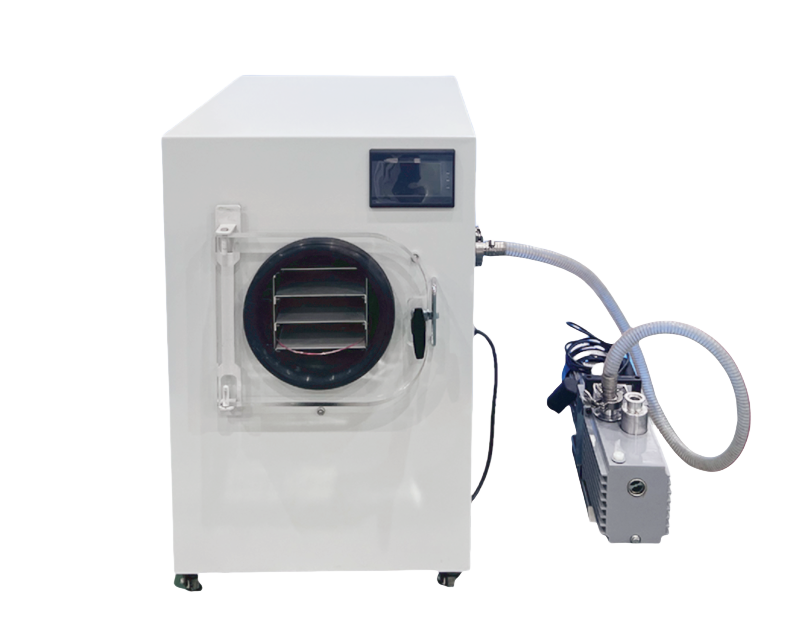

Food freeze dryer photo
Food freeze dryer usage
