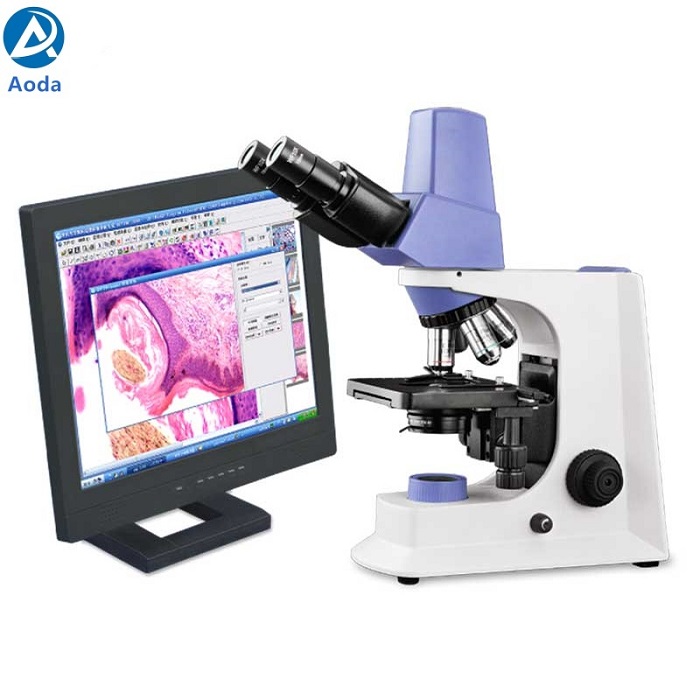

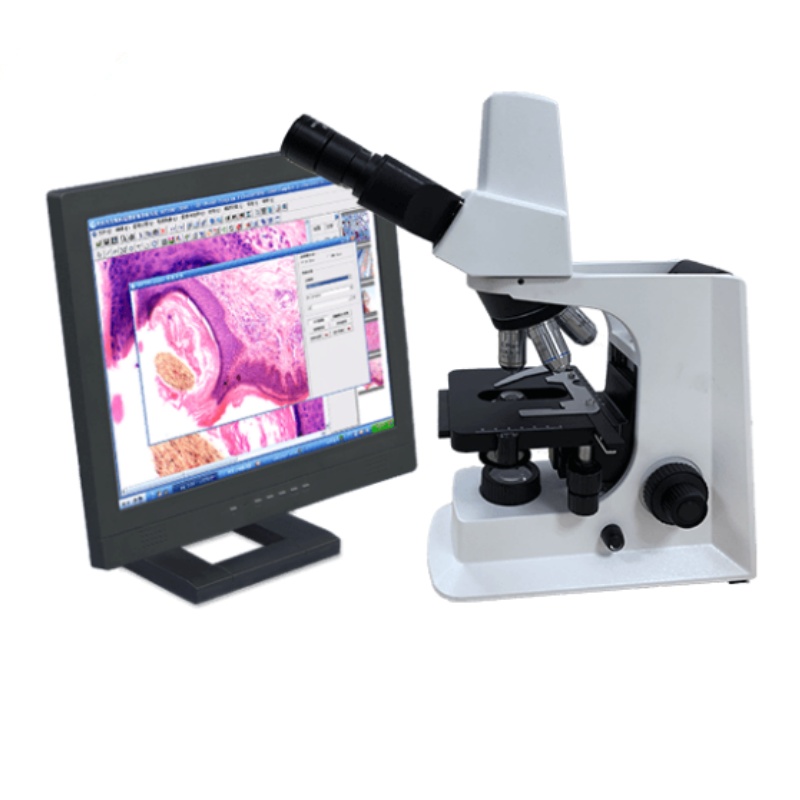

SMART-E500 Digital Imaging Biological microscope
SMART-E500 Digital Imaging Biological microscope Built-in 5.0MP Pixel chip, infinite EPLAN objective lens, with English software, built-in USB interface, via USB data cable and computer host or all-in-one computer...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
SMART-E500 Digital Imaging Biological microscope
SMART-E500 Digital Imaging Biological microscope Built-in 5.0MP Pixel chip, infinite EPLAN objective lens, with English software, built-in USB interface, via USB data cable and computer host or all-in-one computer.
● Dustproof, moisture-proof, built-in chip.
● Light distribution 20:80, eyepiece observation synchronized with digital imaging without switching.
● Built-in 3MP/5MP digital camera system,1/2’’CMOS color sequential scanning.
● USB2.0 connection without external power supply.
● Available for WINDOWS system.
| SMART-E500 Digital Imaging Biological microscope | ||
Items | Specification | SMART-e500 |
Eyepiece | WF 10X-20mm | ●● |
Infinity EPlan Objective | 4X | ● |
10X | ● | |
40X/0.65 (S) | ● | |
100X/1.25 (Oil) (S) | ● | |
Seidentopf Binocular Head | Inclined 30°,Rotatable 360°,Interpupilary Distance: 50-75mm | ● |
Nosepiece | Quadplex | ● |
Mechanical Stage | Stage Size: 145mm×140mm | ● |
Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● |
Illumination | LED Illumination Systems | ● |
12V/20W Halogen Lamp | ○ | |
12V/30W Halogen Lamp | ○ | |
Image Systems | 5 MP Pixel | |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 570mm×275mm×450mm Gross Weight: 8 kgs Net Weight: 7 kgs
