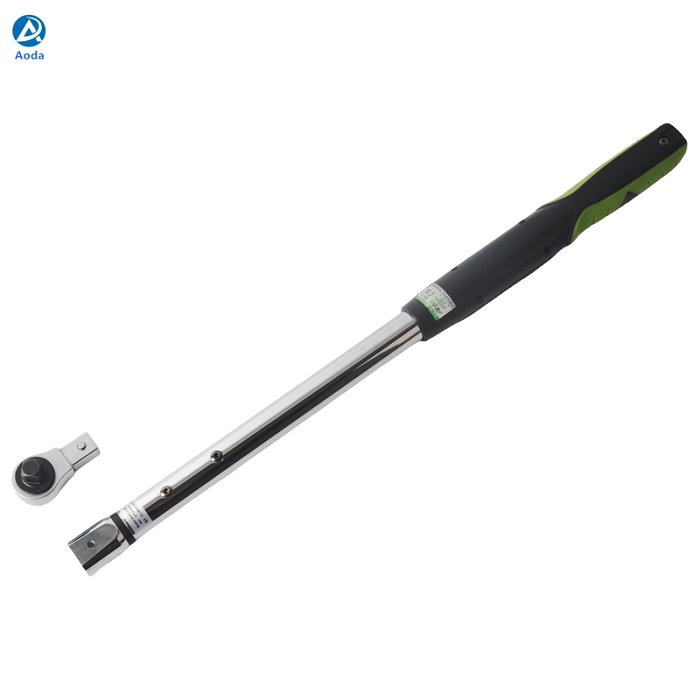

AWE Torque Wrench with Angle
AWE Torque Wrench with AngleAWE Torque Wrench with Angle Digital Display is a new type of digital display wrench. Can di...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
AWE Torque Wrench with Angle
AWE Torque Wrench with Angle Digital Display is a new type of digital display wrench. Can directly and accurately read the torque-angle value, simple to use,Easy to operate. Suitable for bolt fastening and control in the automotive industry, machinery industry, etc.
LCD screen with backlight;
Can directly read the torque-angle value;
Can measure clockwise and counterclockwise;
The buzzer, LED and vibrator prompt the target value;
Four torque units: N.m, kfg.cm, ft.lbf, in.lbf, etc.
Angle unit is degree (°)
3.7V lithium battery
USB interface for data uploading and saving data.
Three measurement modes: real-time mode, peak mode and preset mode.
AWE Torque Wrench with Angle | ||||||||||||
model | Without communication | AWE2 -0010 | AWE2 -0030 | AWE3-0030 | AWE3-0060 | AWE3-0085 | AWE3 -0135 | AWE4 -0135 | AWE4 -0200 | AWE4 -0340 | AWE6- 0500 | AWE6- 0850 |
With communication | AWE2 -0010R | AWE2 -0030R | AWE3-0030R | AWE3-0060R | AWE3-0085R | AWE3 -0135R | AWE4 -0135R R | AWE4 -0200R | AWE4 -0340R | AWE6- 0500R | AWE6- 0850R | |
Minimum division value | 0.01 | 0.1 | ||||||||||
Maximum operating range (N.m) | 10N.m / 7.37ft.lb / 88.50in.lb / 101.97kgf.cm | 30N.m / 22.12ft.lb / 265.5in.lb / 305.91kgf.cm | 30N.m / 22.12ft.lb / 265.5in.lb / 305.91kgf.cm | 60N.m / 44.25ft.lb / 531.04in.lb / 611.82kgf.cm | 85N.m / 62.69ft.lb / 752.31in.lb / 866.75kgf.cm | 135N.m / 99.57ft.lb / 1195in.lb / 1376.61kgf.cm | 135N.m / 99.57ft.lb / 1195in.lb / 1376.61kgf.cm | 200N.m / 147.5ft.lb / 1770in.lb / 2039.43kgf.cm | 340N.m / 250ft.lb / 3009in.lb / 3467.03kgf.cm | 500N.m / 4424in.lb / 368.7ft.lb / 5098.58kgf.cm | 850N.m / 7521in.lb / 626.8ft.ln / 8667.58kgf.cm | |
Connector (inches) | 1/4 | 3/8 | 1/2 | 3/4 | ||||||||
length | 390 | 420 | 535 | 655 | ||||||||
TorqueAccuracy * 1 | ± 1% | |||||||||||
Angle accuracy | ± 1 ° (Accuracy of angle measurement at a speed of 30 ° per second to 90 °） | |||||||||||
Data storage capacity | 255 | |||||||||||
Operating mode | Peakmode(P) / Real-time mode (T)/ Preset mode (Pre) | |||||||||||
unit | N.m, kgf.cm, ft.lbf, in.lbf | |||||||||||
Ratchet head form | Two-way ratchet head | |||||||||||
Ratchet head teeth | 36 | 48 | ||||||||||
Number of keys | 5 | |||||||||||
battery | 3.7V lithiumbattery | |||||||||||
Operating temperature | -10 ℃ ~ 60 ℃ | |||||||||||
storage temperature | -20 ℃ ~ 70 ℃ | |||||||||||
humidity | 90% without condensation | |||||||||||
Drop test height | 1 meter | |||||||||||
Vibration test conditions * 2 | 10G | |||||||||||
Life test * 3 | 10000 times | |||||||||||
