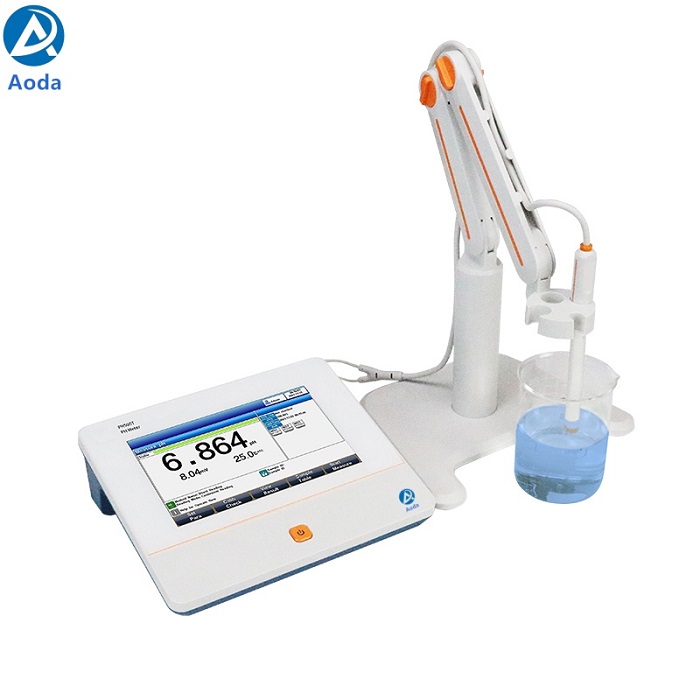

Aoda PH500T Chemistry lab analytical pH meters

Aoda PH500T Chemistry lab analytical pH meters

Automated benchtop pH meters providing fast accurate pH results. ...

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

Aoda PH500T Chemistry lab analytical pH meters


Automated benchtop pH meters providing fast & accurate pH results,accuracy 0.001pH.


INESA  GENERAL FEATURES

  • Color High contrast LCD touchscreen, 7.0 inches.

  • Intelligent operation system provides features including user management, calibration management, method management, data management and etc.

  • Multi-reading feature allows auto-read, timed-read and continuous-read.

  • Automatic/Manual temperature compensation ensures accurate results.

  • Data Storage 1000 sets for each parameter (GLP-compliant).

  • Data analysis feature helps user review, compare and recalculate results.

  • Support for USB or RS-232 communication.

  • Reset feature automatically resumes all settings back to factory default options.

  • IP54 waterproof.

  • 1-6 points calibration with Standard Recognition.

  • Selectable pH buffer groups, including DIN, NIST, USA, MERK, JIS, GB.

  • Support for pH standard group customization.

  • Automatic electrode diagnosis with pH slope and offset display.

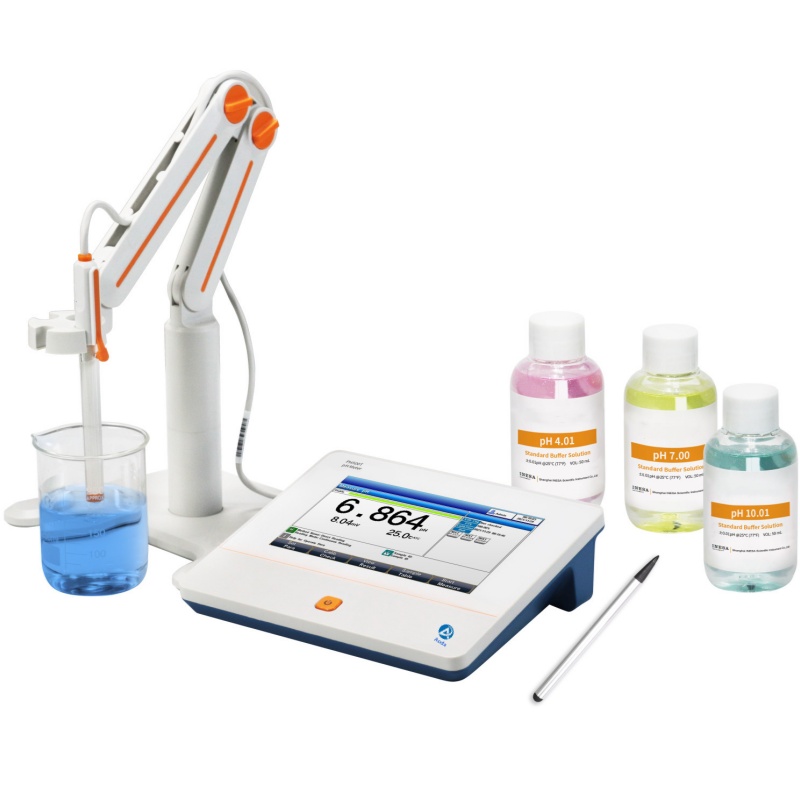

INESA  Includes

  • 962201 pH composite electrode

  • T-818-Q Temperature probe

  • NIST pH standard solution(4.01, 7.00, 10.01) ,50ml/vial

  • REX-6 electrode stand

  • Touch pen

  • 057a18bc-bbc8-411e-98c4-73d1a5bc2df1.pngSpecifications

Model

PH500T pH meters

Parameters

pH/Temp.(mV/ORP)

pH

Range

-2.000 to 20.000 pH

Resolution

0.1, 0.01, 0.001pH

Accuracy

±0.002 pH

Calibration Points

Up to 6

Standard Customization

Yes

Calibration Reminder

Yes

Standard Recognition

NIST, GB, DIN, USA, MERK, JIS buffers

Slope Limit

Yes

mV/ORP

Range

-2000.00 to 2000.00 mV

Resolution

0.1, 0.01 mV

Accuracy

±0.1 mV or ±0.03%

EH ORP Mode

Yes

ORP Calibration Points

1 custom point (relative mV)

Temperature

Range

-10 to 135 ºC, 14 to 275 ºF

Unit

ºC, ºF

Resolution

0.1

Accuracy

±0.1ºC

Measurement

Reading Mode

Auto Read (Fast, Medium, Slow), Timed, Continuous

Reading Prompts

Reading, Stable, Locked

Temp. Compensation

ATC, MTC

Data management

Data Storage

1000 Groups

GLP Features

Yes

Log Management

Yes

Inputs

pH Electrode

BNC(Q9)

Temp. Probe

4-pin aviation connector

Outputs

USB

USB 2.0 flash memory device, PCscanner

RS 232

printer, auto-sampler

Display options

Backlight

Yes

Auto Shutdown

1~60 min, off

IP Rating

IP54

Date and Time

Yes

General

Power

AC Adapter, 100-240V AC input, DC24V output

Dimensions

220×195×68 mm

Weight

950g (2.09 lb)
