AND200 Sample Concentrator
ND200-1 Sample Concentrator isused in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service

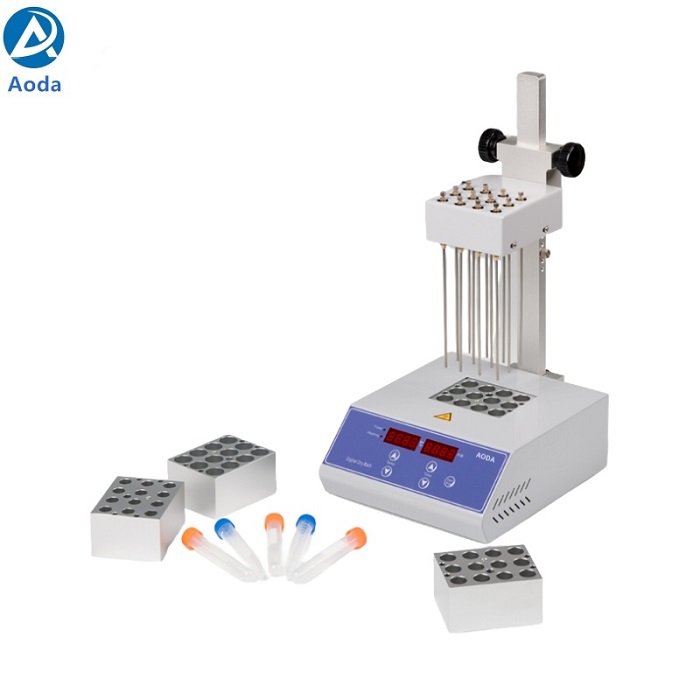

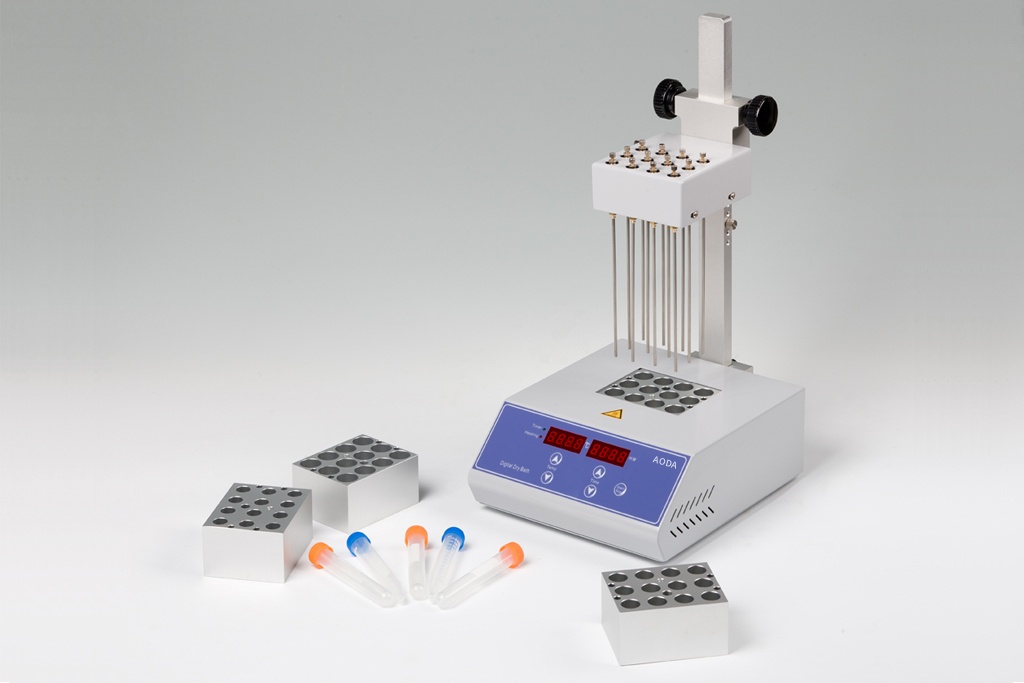

AND200 Sample Concentrator
AND200 Sample Concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum.
The Test tubes are held in a block, and blowing a large number of samples at one time. It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.
1. High precision and wide range of temp. control.
2. Blowing a large number of samples at one time.
3. Blowing each sample independently.
4. Amount of airflow can be adjusted.
5. Easy operation; safe and reliable to use.
AND200 Sample Concentrator | ||
Model | ND200-1 | ND200-2 |
Temp range | RT.+5°C -160°C | |
Temp accuracy | ±0.5℃(@40℃) | |
Temp accuracy | ±1℃(@120℃) | |
Temp uniformity | ±0.5℃ | |
Display accuracy | 0.1℃ | |
Time Range | 1-99h59min/∞ | |
Heating time | ≤15min(25℃ to 160℃) | |
Needle length | 200mm | 150mm |
Max gas usage | 15L/min | |
Max gas pressure | 0.1Mpa | |
Block qty | 1 | 2 |
Max power | 300W | 500W |
Voltage | AC220V or AC110V/50~60Hz | |
Size | 260x220x475mm | |
Weight | 6.0kg | 7.5kg |

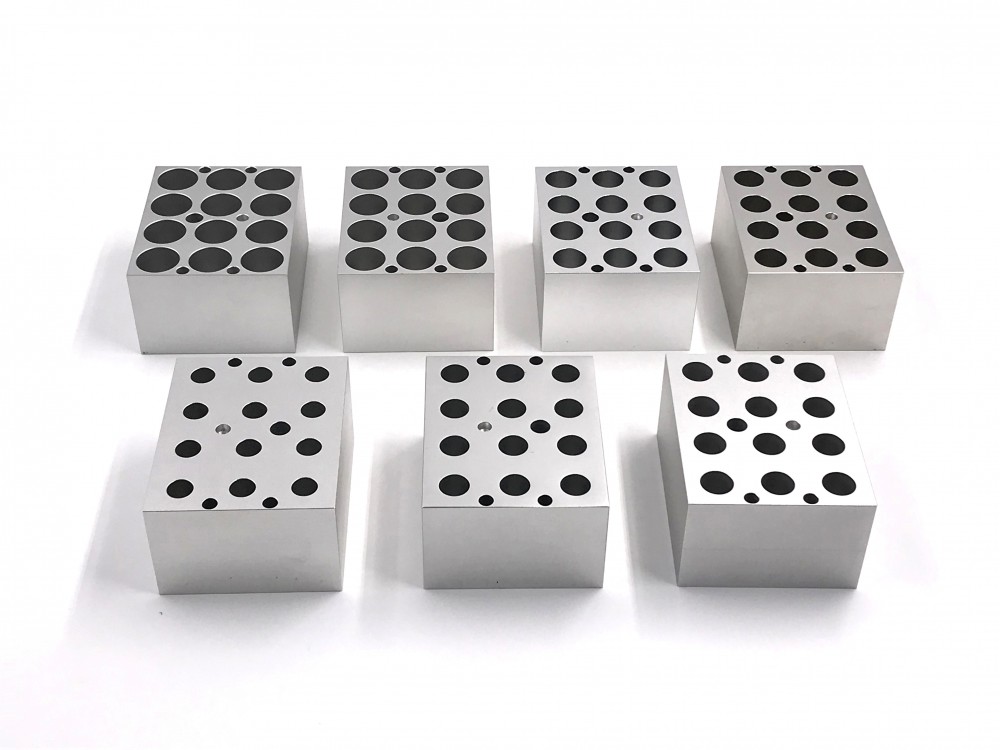

Optional blocks for AND200 Sample Concentrator
Model | Tube diameter | Capacity |
MD50 | 10mm | 12 |
MD51 | 12mm | 12 |
MD52 | 13mm | 12 |
MD53 | 15mm | 12 |
MD54 | 16mm | 12 |
MD55 | 19mm | 12 |
MD56 | 20mm | 12 |
