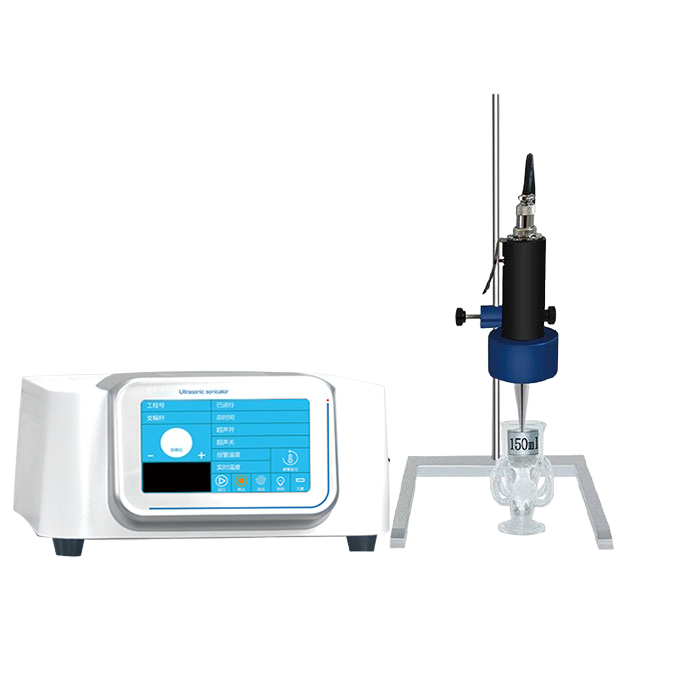

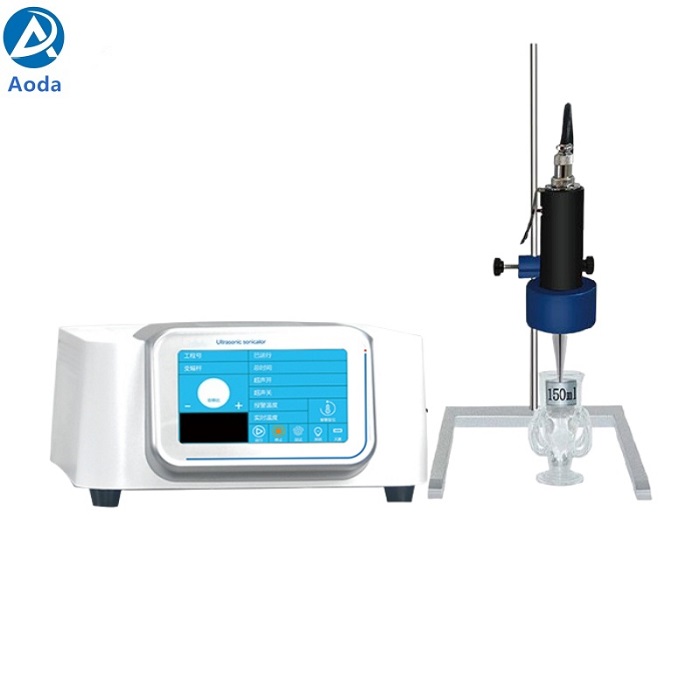

HX-250 Portable Ultrasonic Homogenizer

HX-250 Portable Ultrasonic Homogenizer

HX-250 handheld ultrasonic homogenizer is a multi-functional and multi-purpose instrument that uses ultrasonic waves to produce cavitation effect in liquid. ...

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

HX-250 Portable Ultrasonic Homogenizer

HX-250 handheld ultrasonic homogenizer is a multi-functional and multi-purpose instrument that uses ultrasonic waves to produce cavitation effect in liquid. It is used for cell crushing, emulsification, dispersion, homogenization, extraction, defoaming, cleaning, preparation of nano-materials and acceleration of chemical reactions, etc. The instrument adopts LCD display, with two working modes of automatic and manual (foot pedal), arbitrary stabilization of ultrasonic time and power, sample temperature detection display, automatic frequency tracking and other functions. Ultrasonic cell crusher suitable for small volume sample processing.


Features 蓝.jpg

● probe and host integrated design, high efficiency, energy saving, portable;

● Both manually controlled ultrasound and rack fixed ultrasound can be used, which is especially suitable for micro or small amount of sample processing;

● The variable amplitude rod is made of titanium alloy material, which has the characteristics of high strength, high sound speed, good corrosion resistance and high heat resistance



HX-250 Portable Ultrasonic Homogenizer

Power

2.5-250W continuously adjustable

Crushing capacity

0.1-150ML (need to choose the corresponding horn)

Display method

True color capacitive touch screen display

Single ultrasound time

0.1-99.9S

Single gap time

0.1-99.9S

Total time (ultrasound + gap)

1-99H59M59S

Frequency Range

20-30KHz

Temperature control range

0-100 degrees (optional low temperature and constant temperature)

Alarm function

Time, overload, no load, over temperature

Random Horn

Φ5(mm)

Optional horn

Φ2356(mm)

Duty cycle

0.1-99.9%

Data storage

20 groups

Power supply (optional 110V)

220V/110V/ 50Hz/60Hz

Net size of the instrument (depth*width*height)

410*225*290mm

Way to control

Microcontroller + TFT touch

Optional function

Computer communication + data printing

Voice alarm and prompt function

Yes
