Full automatic Colony counter YPJ200

Full automatic Colony counter YPJ200

This product is an automatic colony counter that integrates image acquisition, data processing, and statistical analysis. It is widely used for colony counting in various fields such as food, pharmaceuticals, cosmetics, environmental monitoring, healthcare, and research institutions.

The Full automatic Colony counter YPJ200 utilizes advanced digital image processing technology and features fluorescence bacterial identification and sterilization functions. It enables fast, accurate, and fully automatic counting of colonies in petri dishes, significantly improving experimental efficiency and reducing human error.

Performance Specifications

1. Imaging Device

Fully enclosed dark box to eliminate interference from external ambient light

360° annular four-color LED visible light, shadowless soft lighting

Built-in 254nm UV lamp for sterilization and disinfection of the chamber and mutagenesis

Built-in 366nm UV lamp to excite colony fluorescence, meeting the needs of E. coli counting, green fluorescent protein observation, etc.

Adjustable upper and lower light source brightness and on/off control

16-megapixel ultra-high-definition color camera

Minimum detectable colony size: 0.1mm

Error rate: ≤±10%

Suitable petri dish diameter: standard 90-110mm (other smaller petri dishes should be placed in the center of the aperture)

2. Software Functions

1) One-Click Counting:

Counting of dispersed colonies: Rapid counting of colonies with clear edges and dispersed distribution.

Counting of clustered colonies: Suitable for rapid counting of colonies with a single background color and blurred edges due to clustering.

Counting of micro-colonies: Suitable for rapid counting of micro-colonies with a diameter of 0.1mm-0.5mm.

3M (PetriFilm™) one-click counting: Rapid counting of colonies growing on 3M PetriFilm™ plates.

Black grid (CompactDry™) one-click counting: Rapid counting of colonies growing on black grid plates.

Grid filter membrane (RIDA™) one-click counting: Rapid counting of colonies growing on filter membrane plates.

Counting of colonies with similar background color: Suitable for rapid counting of colonies whose color is similar to the culture medium.

Counting of large colonies: Suitable for rapid counting of colonies with a diameter greater than 2mm.

Counting of single-color colonies: Select one color from single-color or multi-color colonies for rapid counting.

Counting of multi-color colonies: Multiple clicks on target colonies automatically extract the corresponding color, automatically segmenting all colonies of the same color within the selected area. Suitable for counting specific color colonies in multi-color samples.

2) System Display:

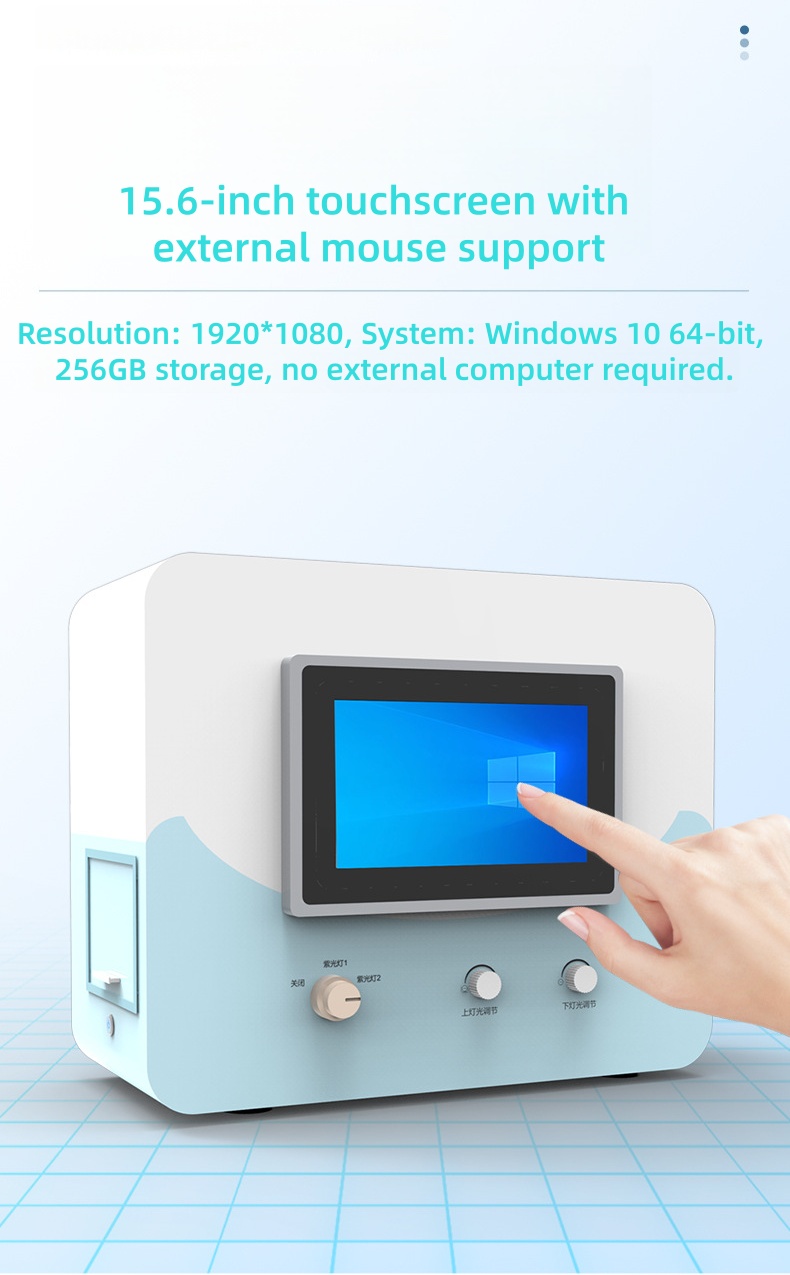

Display: 15.6-inch large touch screen, resolution: 1920*1080, supports external mouse operation.

System: Win10 64-bit, 256G storage, no external computer required.

3) Auxiliary Statistical Tools

Correction: Threshold adjustment can be performed for correction based on one-click counting.

Selection tools: Circle, rectangle, brush.

Colony size classification: After counting, colonies are classified and displayed in 25 categories based on their contour size.

4) Data Security and Management

Multi-user login system, each account has independent data, and data is permanently stored.

Statistical results can be output in PDF format, and the original data cannot be modified.

Built-in Chinese and English bilingual display, one-click switching.

5) Light Source Management

This series of automatic colony counters is equipped with a flexible upper and lower dual light source system. Users can freely adjust the light source with a knob to obtain the best imaging effect according to different types of petri dishes, colony characteristics, and background conditions. Specific functions include:

Independent control: The upper and lower light sources can be turned on or off independently using knobs.

Brightness adjustment: The brightness of each light source can be freely adjusted to meet the needs of different contrast levels.

Mode switching: Users can freely switch between various lighting modes, such as "upper light only," "lower light only," and "upper and lower lights on simultaneously."

6) Automatic Calibration

The instrument is precisely calibrated at the factory. Under normal circumstances, the system can automatically complete the calibration based on preset camera parameters (such as camera model, lens focal length, working distance, etc.). Users do not need to perform any additional operations during daily use; the software can directly perform accurate size measurements, ensuring consistency and efficiency of the results.
