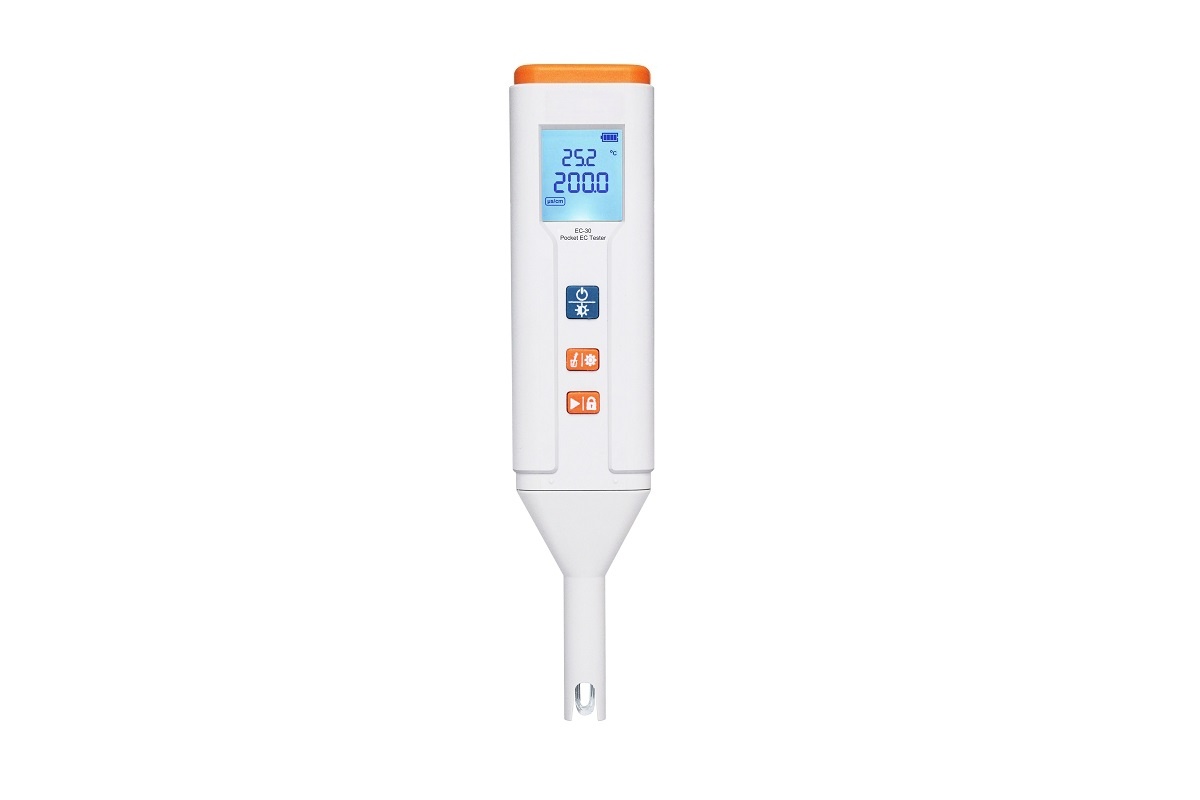

AODA EC-30 Pocket Conductivity EC Tester
EC-30 Pocket EC Tester is our new design,it is convenient for customers to do test in field,very small,easy to take....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
AODA EC-30 Pocket Conductivity EC Tester
EC-30 Pocket EC Tester is our new design,it is convenient for customers to do test in field,very small,easy to take.
High-Resolution LCD Display: Provides a clear reading.
Temperature Unit Options: Choose between ºC or °F.
Auto and Manual HOLD Function: Freezes readings on the display for easy and accurate recording.
Auto-Hold with Countdown Lock: Locks the measurement endpoint automatically.
Replaceable Pocket Electrode: Extends the life of the pocket tester.
IP67 Waterproof: Designed to withstand water exposure.
AAA*4 Battery: Approximately 200 hours of usage with a low battery indicator.
Backlight Adjustment and Automatic Shutdown: Extends battery service life.
Reset Feature: Restores all settings to factory defaults.
Conductivity
Easy electrode replacement with the DJS-1PTC EC sensor.
It offers conductivity, TDS, salinity and resistivity of direct reading.
Conductivity has automatic switching range from 0μS/cm~200.0mS/cm.
It support linear compensation and auto temperature compensation.
(1~3) points calibration with the GB and US Conductivity standard solution.
Refer temperature is defaulted 25ºC.
Automatic temperature compensation (ATC)(0.0~60.0)ºC.
Temperature
Temperature range is (0.0~60.0)ºC.
Temperature accuracy is ±0.3ºC.
Accessories Includes
DJS-1PTC EC sensor
Carrying case
EC standard solution(1408μS/cm, 12.85mS/cm) , 40mL/vial
EC standard solution(1413μS/cm, 12.85mS/cm) , 40mL/vial
Calibration bottles
AAA Battery
Wristband
Model | EC-30 | |
Conductivity | Range | 0μS/cm～200.0mS/cm(Auto ranging) 【0～200.0μS/cm, 200μS/cm～2000μS/cm, 2000μS/cm～20mS/cm, 20mS/cm～200.0mS/cm】 |
Resolution | 0.1μS/cm, 1μS/cm, 0.01mS/cm, 0.1mS/cm | |
Accuracy | ±1%FS(0～20mS/cm), ±2%FS(20mS/cm～200mS/cm) | |
Repeatability | ≤0.5%FS | |
Calibration | (1～3) points | |
TDS | Range | (0～50)ppt |
Resolution | 0.1ppm, 0.01ppt | |
TDS coefficient | 0.40～1.00 | |
Salinity | Range | (0～50)ppt |
Resolution | 0.01ppt | |
Resistivity | Range | 10Ω·cm～99.99KΩ·cm, 0.1MΩ·cm～20MΩ·cm |
Resolution | 0.01KΩ·cm, 0.01MΩ·cm | |
Temperature | Range | (0.0~60.0)ºC |
Resolution | 0.1ºC | |
Accuracy | ±0.3ºC | |
Auto Temperature compensation | (0.0~60.0)ºC | |
IP Rating | IP67 | |
Material | ABS | |
Power | AAA Battery×4 | |
Battery Life(h) | ＞200 | |
Sensor Dimensions(mm) | Φ12×40 | |
Tester Dimensions(mm) | 40×30×188 | |
Net Weight (kg) | 0.15 | |
