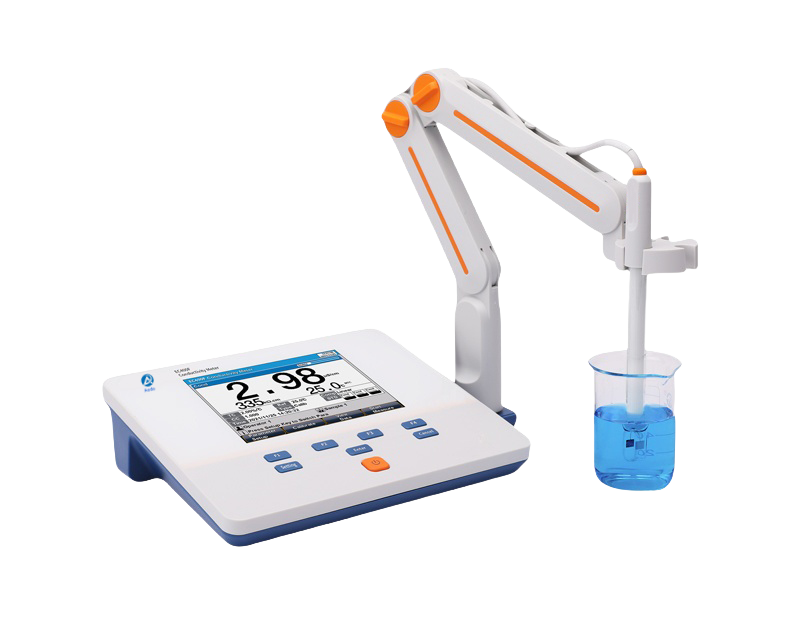

AODA EC400F Conductivity EC TDS Meter
EC400F Conductivity Meter tests Conductivity,EC,Temprature,Resistivity,TDS,Salinity all in one....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
EC400F Conductivity EC TDS Meter
EC400F Conductivity Meter tests Conductivity,EC,Temprature,Resistivity,TDS,Salinity all in one. Automatic temperature compensation.
High resolution LCD display, 7.0 inches.
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data Storage 500 sets of each parameter (GLP-compliant).
RS-232 communication for print.
USB communication for PC software.
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1-3 points calibration with Standard Recognition.
Settable parameters, including cell constant, temperature compensation coefficient and TDS factor.
Temperature compensation type (none, linear, pure water).
Model | EC400F Conductivity EC TDS meter | |
Parameters | EC/Temp.(Resistivity/TDS/Sal.) | |
Conductivity | Range | 0.000 μS/cm~1000 mS/cm |
Resolution | 0.001 μS/cm minimum, changed with range | |
Accuracy | ±0.5% FS | |
Reference Temperature | 20, 25ºC | |
Calibration Points | Up to 3 | |
Standard Recognition | 84μS/cm, 1413μS/cm, 12.88mS/cm | |
Resistivity | Range | 5.00Ω·cm~100.0 MΩ·cm |
Resolution | 0.01 Ω·cm minimum, changed with range | |
Accuracy | ±0.5% FS | |
TDS | Range | 0.000ppm~1000ppt |
Resolution | 0.001 ppm minimum, changed with range | |
Accuracy | ±0.5% FS | |
Salinity | Range | 0.0～80.0 ppt, 0.00~8.00 %NaCl |
Resolution | 0.1ppt, 0.1% | |
Accuracy | ±1ppt | |
Temperature | Range | (-10.0～135.0)℃, (14.0~275.0)ºF |
Resolution | 0.1ºC,ºF | |
Accuracy | ±0.1ºC | |
Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
Reading Prompts | Reading, Stable, Locked | |
Temp. Compensation | ATC, MTC | |
Data management | Data Storage | 500 results each |
GLP Features | Yes | |
Conductivity with Temp. Probe | 5-pin aviation connector | |
Outputs | USB | PC |
RS 232 | printer | |
Display options | Backlight | Yes |
Auto Shutdown | 1~60 min, off | |
IP Rating | IP54 | |
Date and Time | Yes | |
General | Power | EU Power Adapter(Input: AC 230V/50Hz; Output: DC 20V/1000mA). Configurable power adapter option available. |
Dimensions | 242×195×68 mm | |
Net Weight | 900g (1.98 lb) | |
Dimensions (Carton) | 370×305×330 mm | |
Shipping Weight | 2.5 kg | |
Standard including :
DJS-1VTC Conductivity Electrode
1413μS/cm EC standard solution, 50mL, 1 vial
REX-5 electrode stand
