Aoda EC510T 0.000 μS/cm to 3000 mS/cm Portable atc EC Meter
EC510T Conductivity meter,Automatic temperature compensation,1-5 points calibration...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Aoda EC510T 0.000 μS/cm to 3000 mS/cm Portable atc EC Meter
GENERAL FEATURES
Color High contrast LCD touchscreen, 4.3 inches.
Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management, Log Management and etc.
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data Storage 1000 sets for each parameter (GLP-compliant).
Data analysis feature helps user review, compare and recalculate results.
Support for USB communication.
Auto-power off feature effectively extends the battery service life.
Reset feature automatically resumes all settings back to factory default options.
IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
1-5 points calibration automatically recognizes the standard solutions.
Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
Temperature compensation type (none, linear, pure water).
Specifications
Model | EC510T portable EC meter | |
Parameters | EC/Resistivity/TDS /Sal./Temp. | |
Conductivity | Range | 0.000 μS/cm to 3000 mS/cm |
Resolution | 0.001 μS/cm minimum, various with range selection | |
Accuracy | ±0.5% FS | |
Reference Temperature | 5, 10, 15, 18, 20, 25 ºC | |
Calibration Points | Up to 5 | |
Calibration Reminder | Yes | |
Standard Recognition | 10μS/cm, 84μS/cm, 500μS/cm, 1413μS/cm, 12.88mS/cm; 146.5μS/cm, 1408μS/cm, 12.85mS/cm, 111.3mS/cm | |
Resistivity | Range | 5.00 Ω·cm~100.0 MΩ·cm |
Resolution | 0.01 Ω·cm minimum | |
Accuracy | ±0.5% FS | |
TDS | Range | 0.000ppm~1000ppt |
Resolution | 0.001mg/L minimum, changed with range | |
Accuracy | ±0.5% FS | |
Salinity | Range | 0.0～80.0 ppt |
Resolution | 0.1ppt | |
Accuracy | ±1ppt | |
Temperature | Range | -10 to 135 ºC, 14 to 275 ºF |
Unit | ºC, ºF | |
Resolution | 0.1 | |
Accuracy | ±0.1ºC | |
Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
Reading Prompts | Reading, Stable, Locked | |
Temp. Compensation | ATC, MTC | |
Data management | Data Storage | 1000 Groups |
GLP Features | Yes | |
Inputs | Conductivity with Temp. Probe | 5-pin aviation connector |
Outputs | USB | USB 2.0 flash memory device, PC, scanner |
Display options | Backlight | Yes |
Auto Shutdown | 300, 600, 1200, 1800, 3600 sec., off | |
IP Rating | IP65 | |
Date and Time | Yes | |
General | Power | Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output |
Dimensions | 90×255×40 mm | |
Weight | 500g (1.1 lb) | |
Dimensions (Carton) | 410×330×165 mm | |
Weight (Gross) | 5.5 kg | |

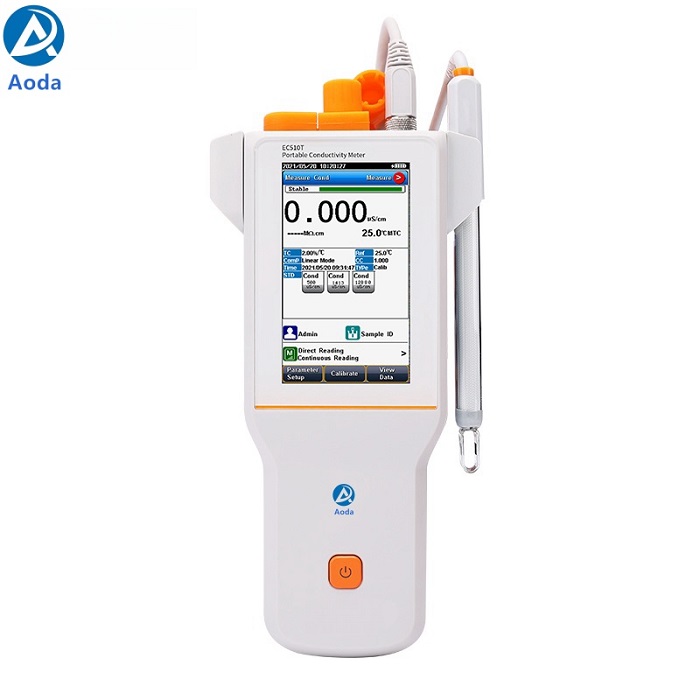

Product photo
 |  |

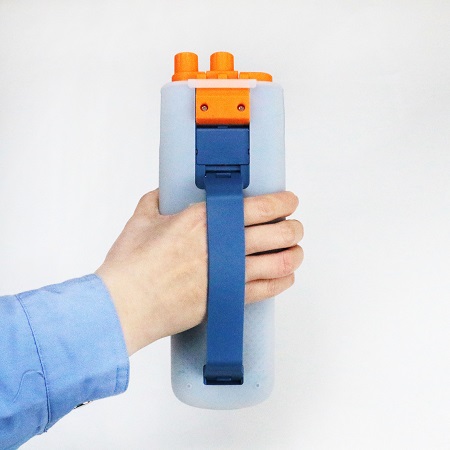

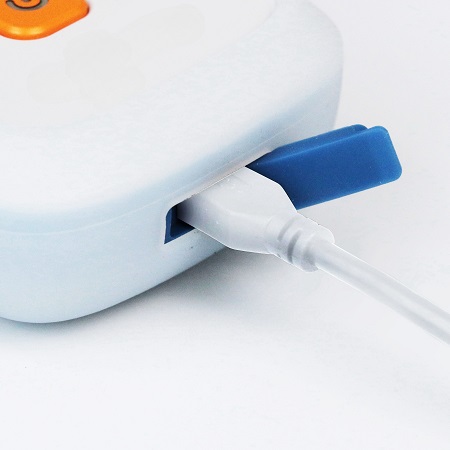

| Wristbands for easy carrying | USB port for charging and data uploading |
Other Water quality meters we have
FAQ
Q : What's the cell constant of conductivity sensor ?
A : k=1
Q : What's the warranty of Conductivity meter ?
A : 1year.
Q : What's the temperature compensation ?
A : It accepts Automatic and Manual temperature compensation.
