Aoda E-201-P 3 in 1 combination Flat pH sensor

Aoda E-201-P 3 in 1 combination Flat pH sensor

E-201-P Flat pH sensor designed for testing pH value of skin,paper,leather etc samples....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

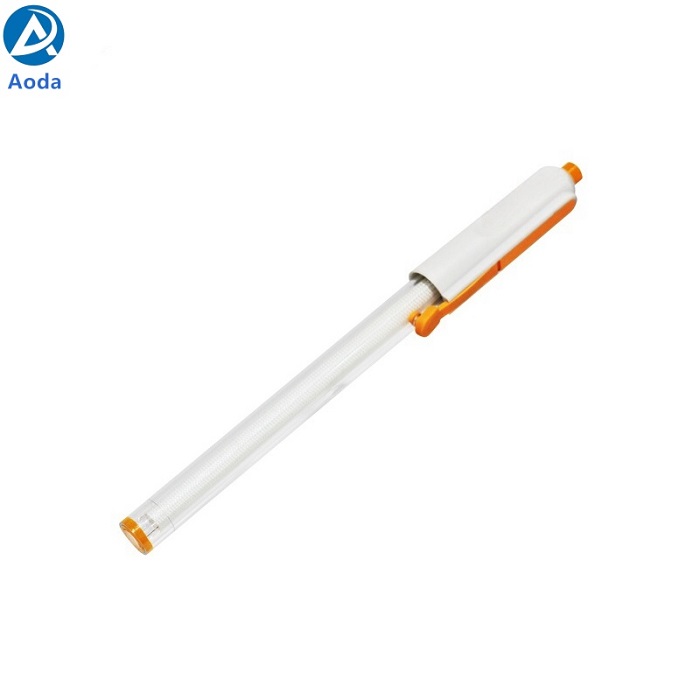

Aoda E-201-P 3 in 1 combination Flat pH sensor


E-201-P Flat pH sensor designed for testing pH value of skin,paper,leather etc samples.


INESA  GENERAL FEATURES

  • pH electrodes has the pH indicator electrode, composite electrode, and 3 in1 pH composite electrode.

  • pH indicator electrode needs to cooperate with reference electrode.

  • Composite electrode combines the pH indicator electrode, reference electrode.

  • 3 in 1 pH composite electrode combines the pH indicator electrode, reference electrode, and temperature probe.

  • Temperature probes can adjust pH measurements by correcting the electrode slope according to the measured temperature.

  • The connector must be compatible with the meter you are using.

    • S7 【S7-BNC(Q9) cable】

    • BNC(Q9)



057a18bc-bbc8-411e-98c4-73d1a5bc2df1.pngSpecifications

Model

E-201-P

Name

pH composite electrode (Flat)

pH Range

0~14

Fill Solution

3 M KCl

Sensor material

Polycarbonate

Working Temp.

5~60 ℃

Junction material

Single fabric

Reference Type

Ag/AgCl

Dimension

Φ12×120 mm

Connector Type

BNC(Q9)


057a18bc-bbc8-411e-98c4-73d1a5bc2df1.pngDetails

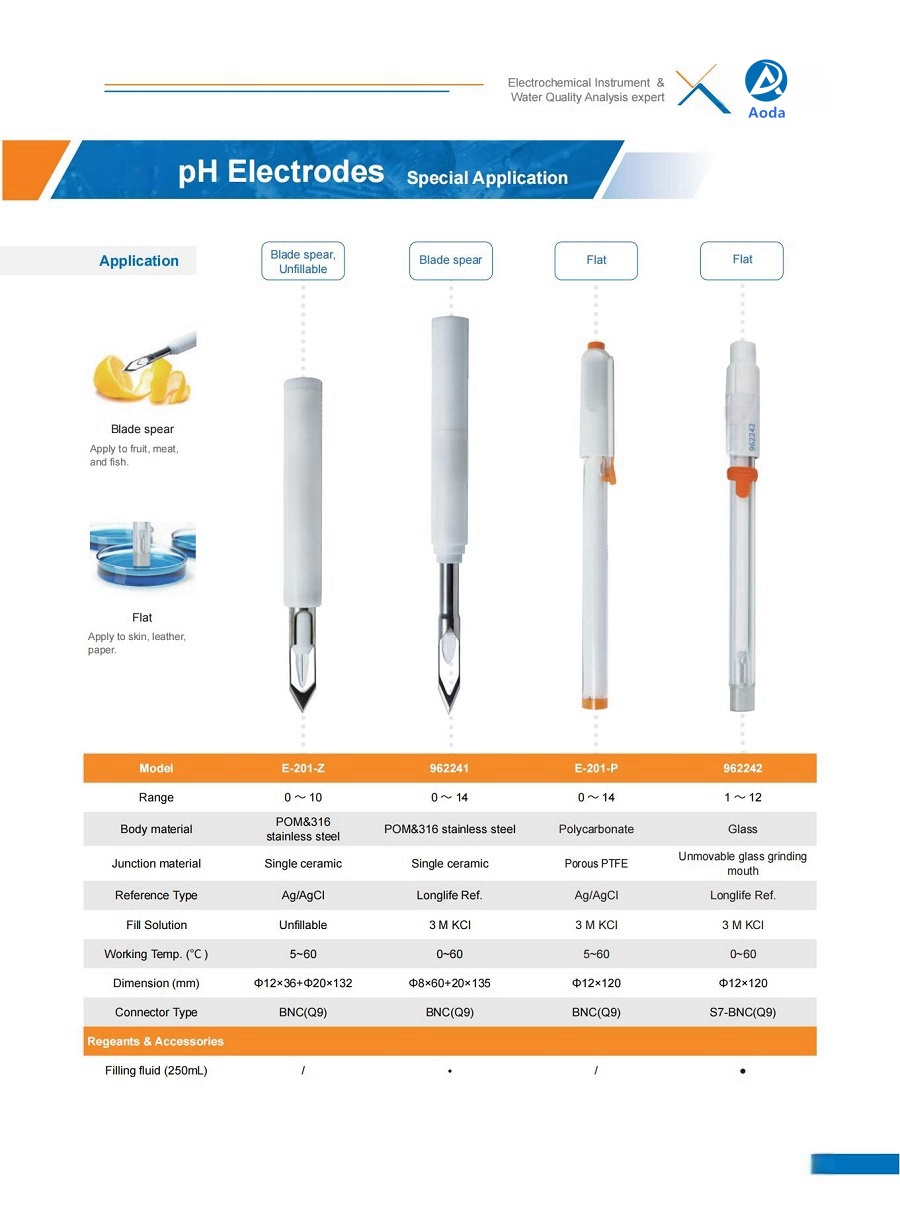

INESA_REX_Electrode_Product Catalog__2023.12.8_compressed_14(1).jpg

057a18bc-bbc8-411e-98c4-73d1a5bc2df1.pngFAQ

Q : What is 3 IN 1 Electrode ?

A : 3 IN 1 means it combined with pH indicator electrode, reference electrode, and temperature probe.


Q : Is it automatic temperature compensation ?

A : Yes,it is. It is suitable for working temperature 5~60 ℃.


Q : How to connect it to our monitor / meter ?

A : 65-1C pH composite electrode has BNC interface,it asks your mintor or meter has this connector.


Q : What's the work life of your pH electrode?

A : It has 1year work life. However,it also depends on using frequency and protection after using.


Q : What is filling solution ?

A : 3.0mol/L KCL solution.
