Aoda 500NTU Portable handheld Turbidity meter

WGZ-2B portable turbidity meter measuring range 0～500 NTU...

Fast Delievery
Quality Assurance
24/7 Customer Service

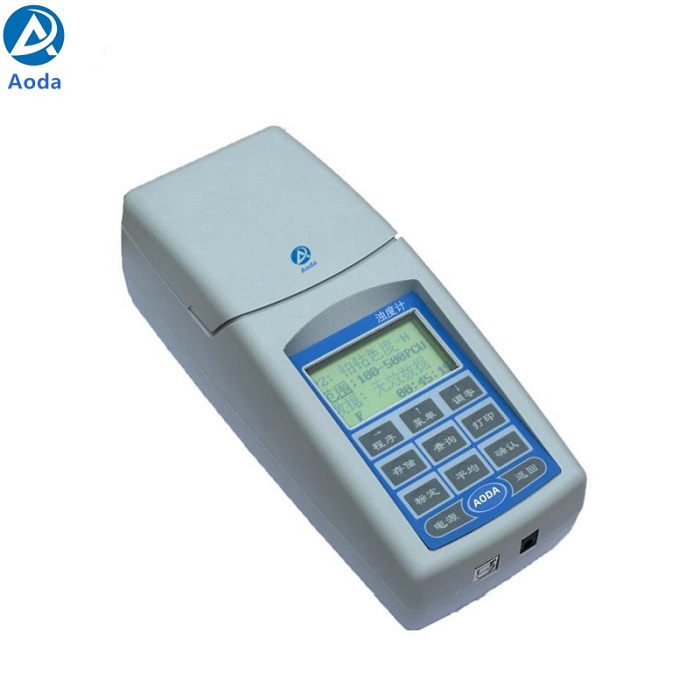

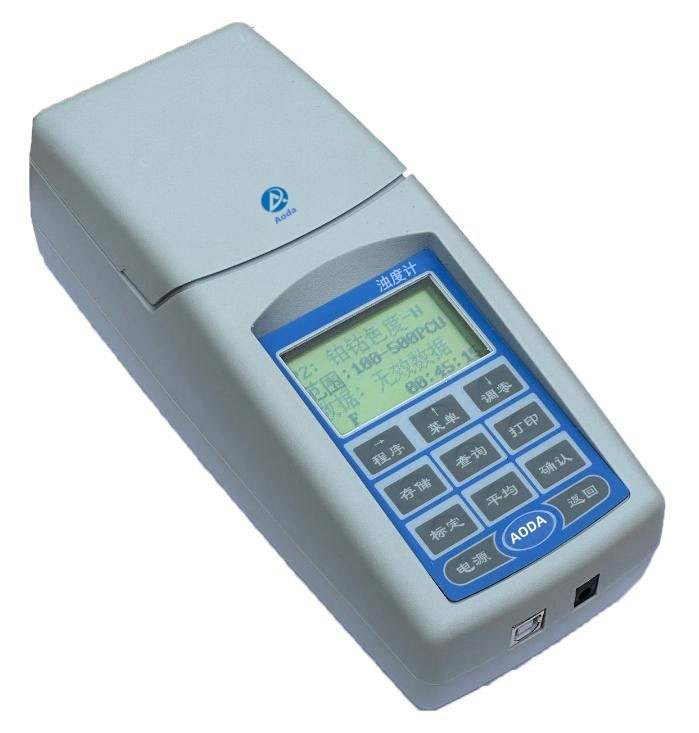

Aoda 500NTU Portable handheld Turbidity meter

Turbidity meter is used to measure the scattering degree of light produced by insoluble particulate matter suspended in water or transparent liquid, and can quantitatively characterize the content of these suspended particulate matter. It can be widely used in turbidity measurement in power plants, pure water plants, water plants, domestic sewage treatment plants, beverage plants, environmental protection departments, industrial water, wine making industry, pharmaceutical industry, epidemic prevention departments, hospitals and other departments.

Features

■Portable microcomputer configuration, equipped with 32-bit data processor, large-capacity memory,

English operating system;

■Large screen LCD with backlight, clearly displays clock, parameters, data, units, status prompts, etc.;

■Equipped with low power configuration, automatic screen off protection and automatic shutdown function

without key operation, and the automatic shutdown time can be set;

■Built-in water quality turbidity working curve, users can use it directly. It has single-point zeroing, 2-point

calibration, multi-point calibration, factory calibration recovery and other data calibration methods;

■It has single measurement, continuous measurement, average measurement and other reading modes; it

has self-diagnosis error code prompt function;

■It has data saving, data query, data printing, data deletion and other functions, and the memory stores more

than 600 groups of measurement data, with power-off preservation;

■This instrument complies with the "JJG880-2006 Turbidimeter Metrology Verification Regulations" and "HJ1075-2019 Water Quality Turbidity Determination Turbidimeter Method" standard requirements.

Specifications

Model	WGZ-2AB、WGZ-500B	WGZ-2B	WGZ-3B	WGZ-4000B
Incident light wavelength	400-600nm		860nm±30nm
Measurement principle	90° scattered light (detector is at a perpendicular position to the parallel incident light)
Mini reading（NTU）	0.01	0.001	0.01	0.001
Measuring range （NTU）	0～500 NTU	0～500 NTU	0～1000 NTU	0～4000 NTU
Reading error	±6％
Repeatability	≤0.5％
Zero draft	±0.5％F.S
Data storage	600gourps
Communication interface	USB(optional)
Power supply	220V/50Hz/DC7.5V/ 1.2A
