Aoda LD-DI-SML series Deionized water machine

Aoda LD-DI-SML series Deionized water machine

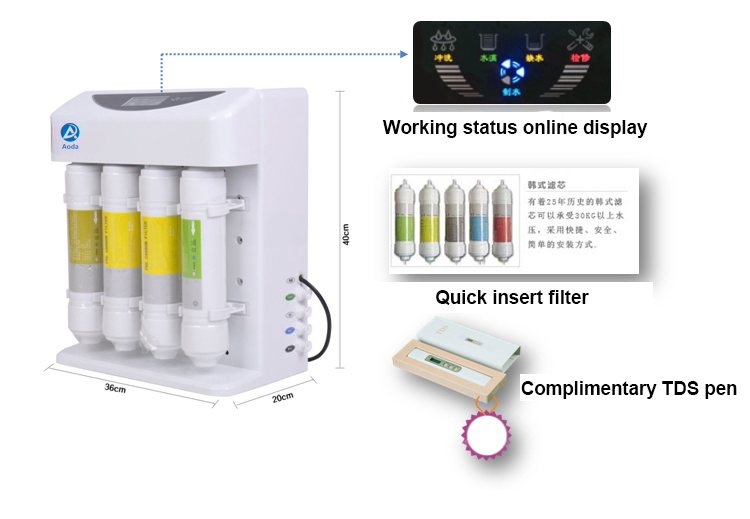

Features

1. Korean appearance, exquisite and slim, small size, can be inside lab cabinet.

2. Quick-insert filters make replacement easy and convenient.

3. Design of exposed filter cartridges make consumables replaced easily.

4. Microcomputer automatically control, backlight LED large LCD screen. 5.

5. Visualized operating status, real-time display flushing, water making,  water full&lack and maintenance status, with sound and light alarm function.

6. Transparent window, simple&graceful, detachable panel, convenient maintenance.

7.Newest environmentally friendly materials. With a portable test pen.

Application

Preposition unit of ultra pure water system, supply water for biochemical analyzer, electroplating painting, battery charging, chips washing, microbial culture media, chemical&biochemical regent preparation, buffer making, photographic film processing, stability test chamber, meteorological test equipment, hydrogen generator, salt

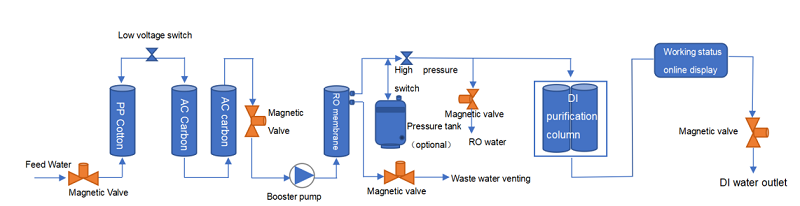

Process

Filter function

1st stage: PP cotton (PPF filter with a pore size of 5 microns): Preliminary filtration of raw water to remove coarser particles, colloids, suspended solids, etc. in the water.

2nd stage: Granular activated carbon: high-efficiency adsorption of odor, color, organic matter, and heavy metals in water.

3rd stage: Compressed activated carbon: further remove residual chlorine, organic compounds, color, odor, turbidity, etc.

4th stage: RO reverse osmosis membrane: 0.0001 micron pore size, effectively removes organic impurities such as viruses and heavy metals in water.

5thstage: Deionization purification column × 2, remove most of the heavy metals and trace elements in the water, and the water quality meets the national laboratory water first-grade water standard.

Parameter

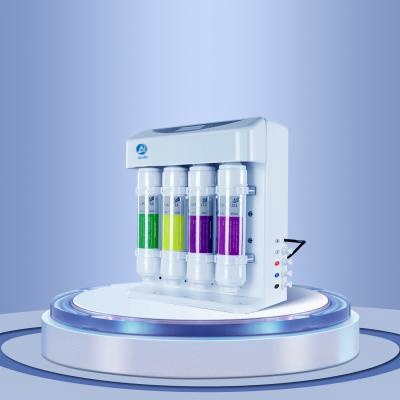

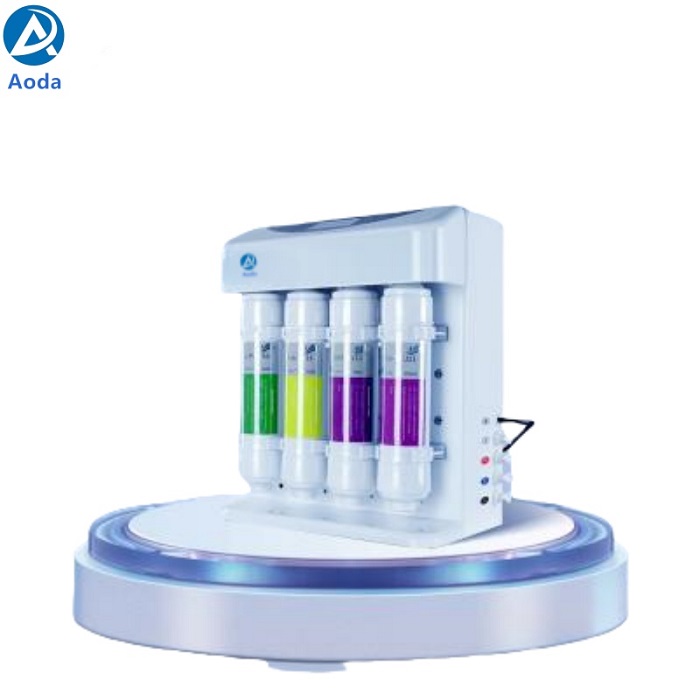

Product Image
