WS-YV series Horizontal Pulsating Vacuum Steam Sterilizer

WS-YV series Horizontal Pulsating Vacuum Steam Sterilizer

This sterilizer is Class B,suitable for clinical institutions to sterilize medical devices, dressings, glassware, solution culture medium, etc. by steam method....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

WS-YV series Horizontal Pulsating Vacuum Steam Sterilizer


WS-YV series pulsating vacuum steam sterilizer is a device that uses saturated steam to sterilize items. The structure of the sterilizer is circular, and the steam supply method is self-contained steam generator and external steam. The door of the sterilizer is single-door, the jacket design is jacketed, the main material is stainless steel or carbon steel, and the control method is microcomputer control; it consists of a sterilization chamber, jacket, shell, door, steam generator, pipeline system, control system, touch screen and power supply system.

This sterilizer is Class B,suitable for clinical institutions to sterilize medical devices, dressings, glassware, solution culture medium, etc. by steam method.


Features 蓝.jpg

v The sterilization process is automatically controlled by a microcomputer, no supervision is required, and it is easy to use.

v It has three or more pulsating vacuums, which is suitable for various packaged, unpackaged, hollow and porous instruments with internal pipes.

v It has a deep drying function to achieve the drying effect of sterilized items.

v It has a printing function, and the printer can record the entire sterilization process.

v It has a Bowie & Dick test function for steam penetration detection. Automatic fault detection is convenient for self-maintenance.

It is equipped with over-temperature and over-pressure automatic protection devices:

Safety interlocking device; When the door is not closed tightly, steam cannot enter the inner body and an alarm is issued. When the pressure in the sterilization chamber is greater than 0.027MPa, the door is interlocked and cannot be opened.

Overpressure protection; When the pressure exceeds the working pressure, the safety valve automatically releases pressure for protection.

Low water level protection device; It cannot be started if the water does not reach the high water level, and it automatically cuts off the power when there is a lack of water at the low water level.

Overcurrent protection; when the current is overloaded, the power circuit breaker automatically cuts off the power supply.

The sterilization chamber is made of high-quality stainless steel.

The sterilizer is equipped with a program function, which automatically discharges the air and condensed water in the sterilizer during the sterilization process, so that the sterilization temperature in the sterilization chamber tends to be balanced.

Equipped with a device to maintain steam pressure, the pressure control is set within the range of 0.05-0.22MPa, and the corresponding temperature is 110-134℃. Select the working temperature and pressure through the adjustment button on the control panel.



Name

WS-150YV

WS-200YV

WS-300YV

Capacity

150L (Φ440 x 1000mm)

200L (Φ515 x 1000mm)

300L (Φ600 x 1080mm)

Design temperature

150

Design pressure

0.3MPa

Rated working pressure

0.22MPa

0.25MPa

0.25MPa

Rated working temperature

134℃

138℃

138℃

Thermal uniformity

≤±2℃

Temperature range

105℃134℃

115134℃

115134℃

Timing range

099 minutes

Drying time range

099 minutes

Power supply

9KW/AC380V.50Hz

10KW/AC380V.50Hz

 13KW/AC380V.50Hz

Performance

Automatic water inlet, pulsating vacuum, sterilization, timing, steam discharge, drying, alarm.

Safety equipment

Overpressure protection, overheat protection, automatic constant pressure, low water level protection, overcurrent protection, the door cannot be opened when the internal pressure exceeds 0.027Mpa, with safety interlocking device.

Dimensions

140×65×160  (cm)

140×75×174  (cm)

1585×185  (cm)

Shipping dimensions

156×82×182  (cm )

156×91×188 (cm )

168×108×210 (cm )

Weight

Net: 340kg / Gross: 430Kg

Net: 370kg / Gross: 460Kg

Net: 470kg / Gross: 580Kg

Vacuum limit

-0.08MPa

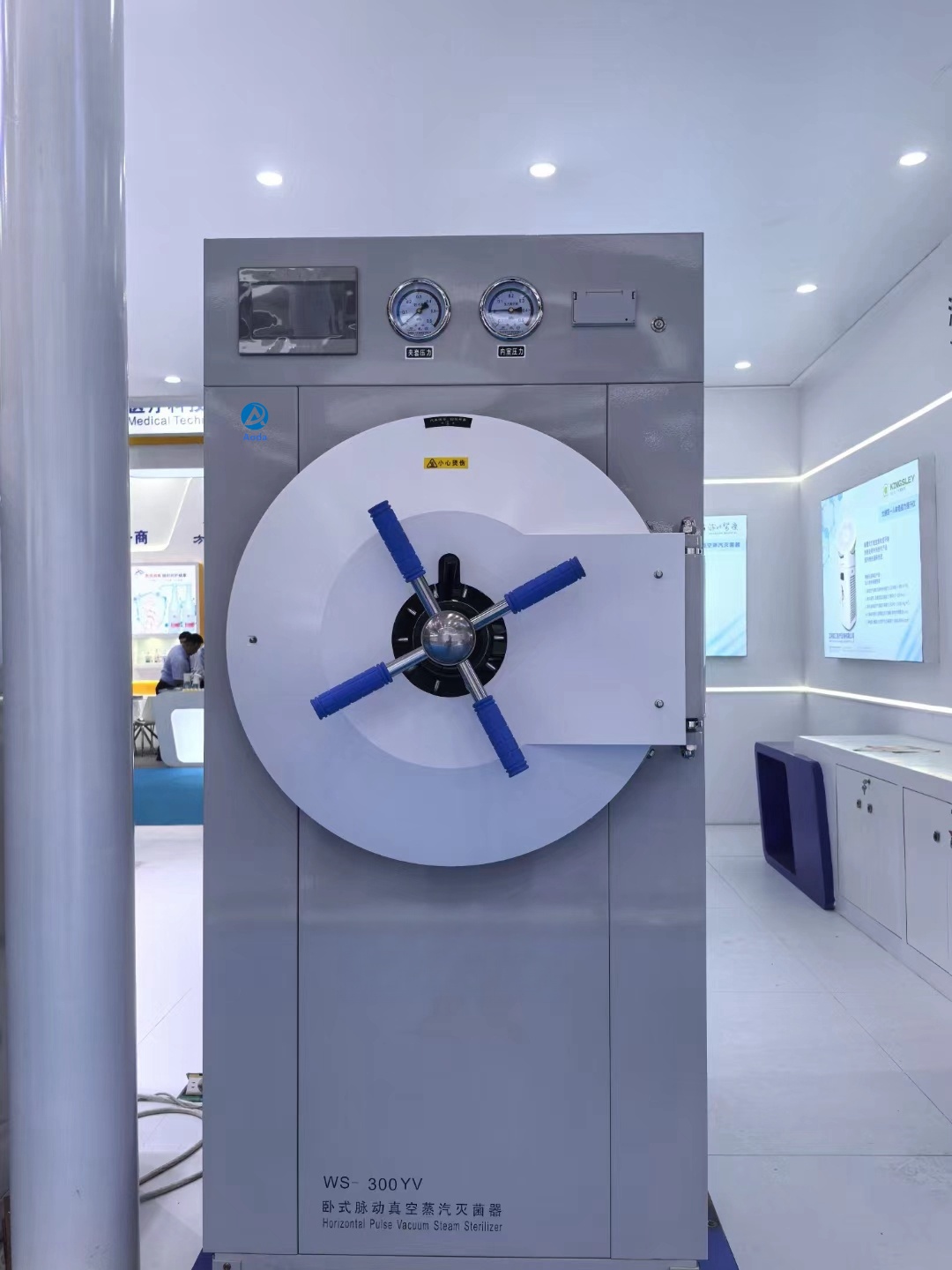

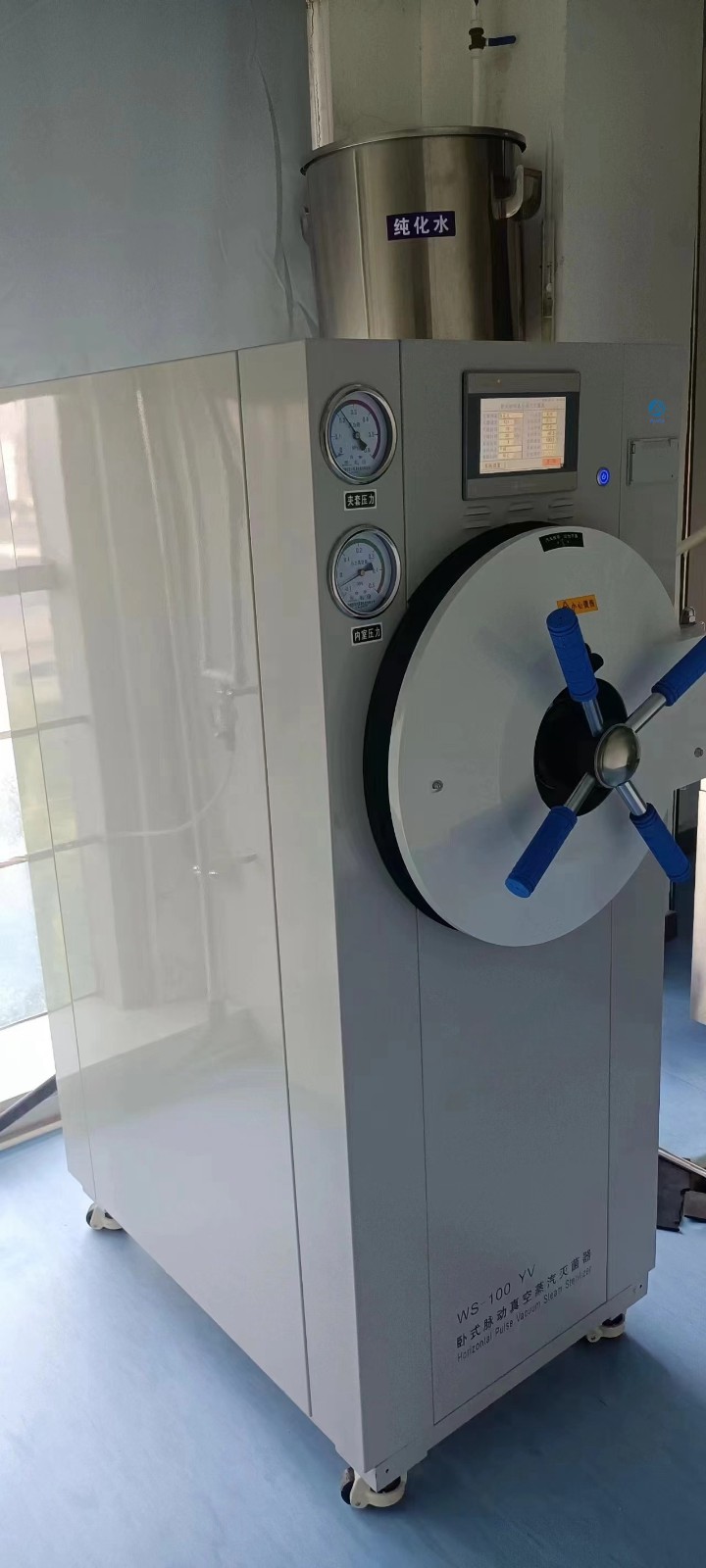

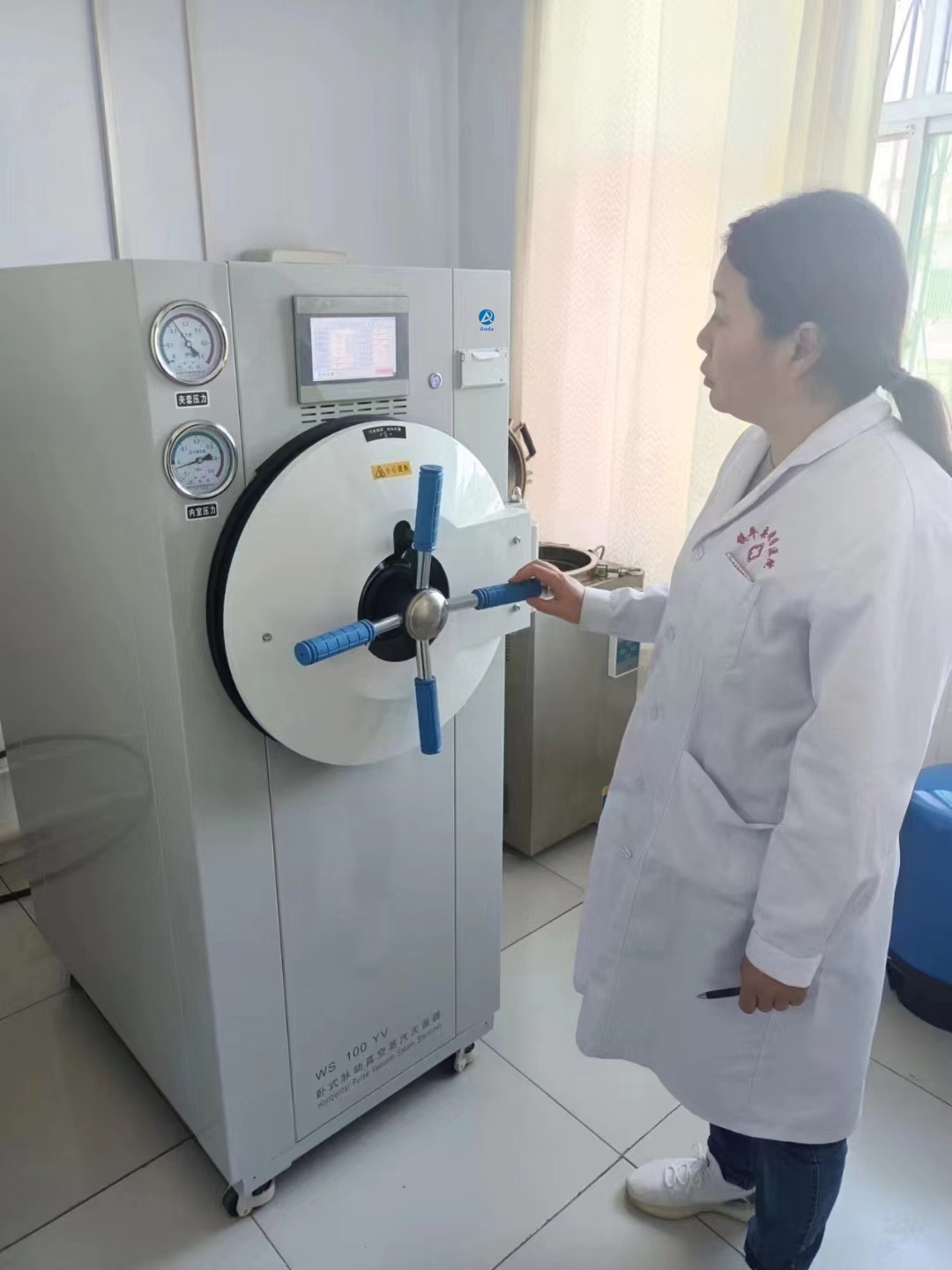

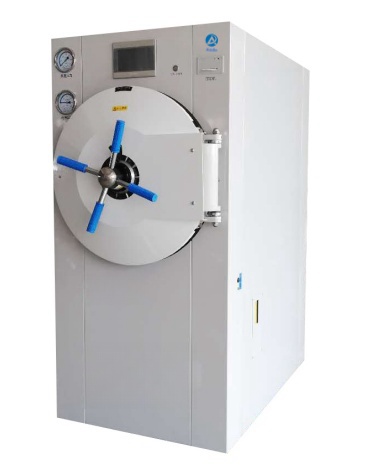

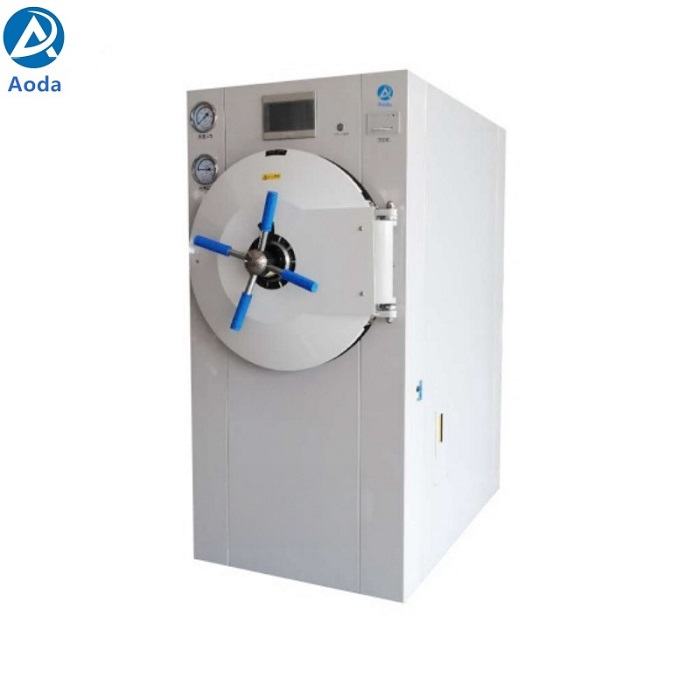

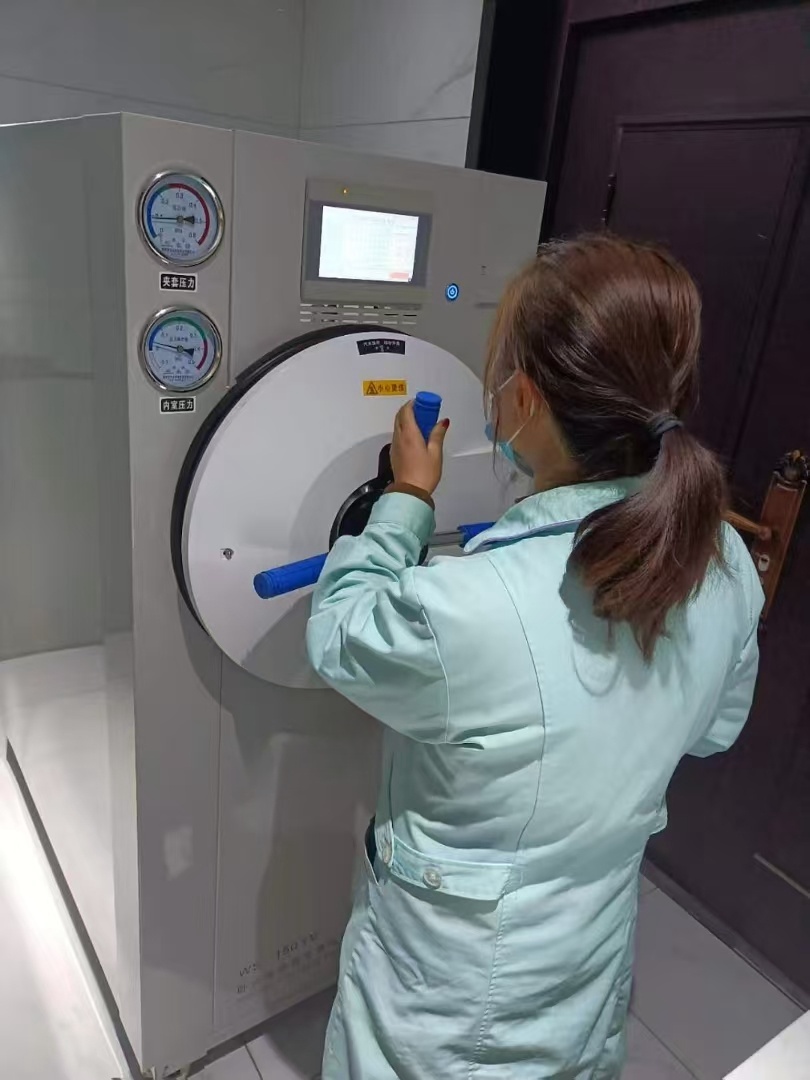

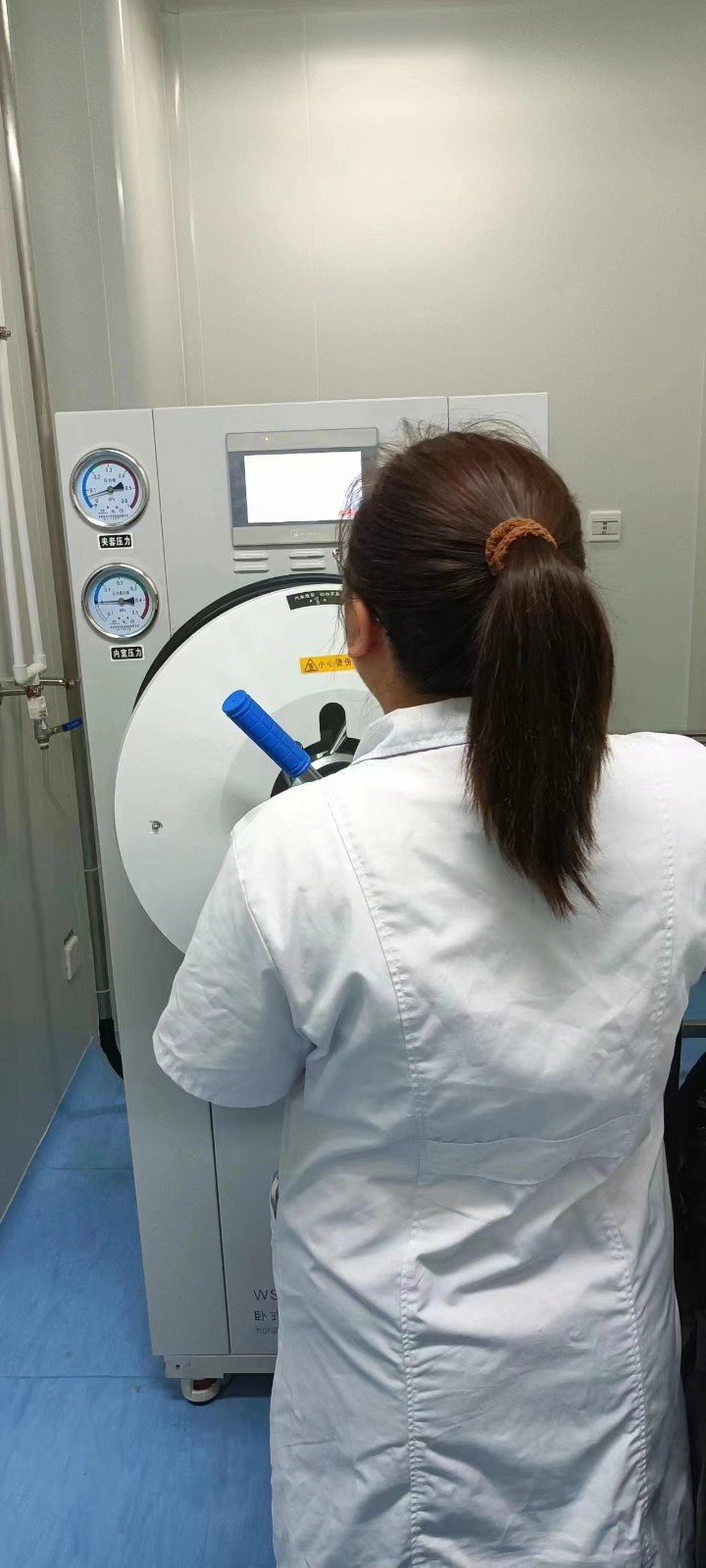

Product photo 蓝.jpg
