Ultrasonic Homogenizer for small volume samples

Ultrasonic Homogenizer for small volume samples

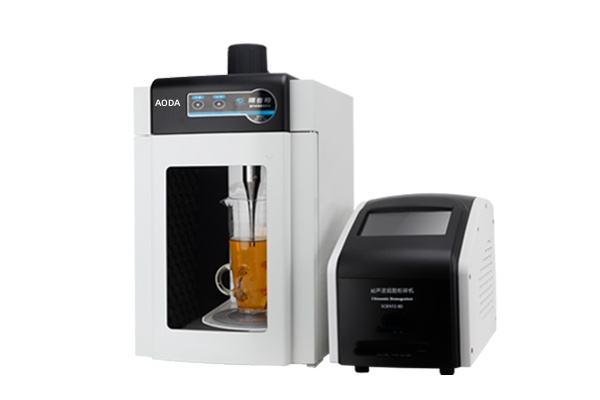

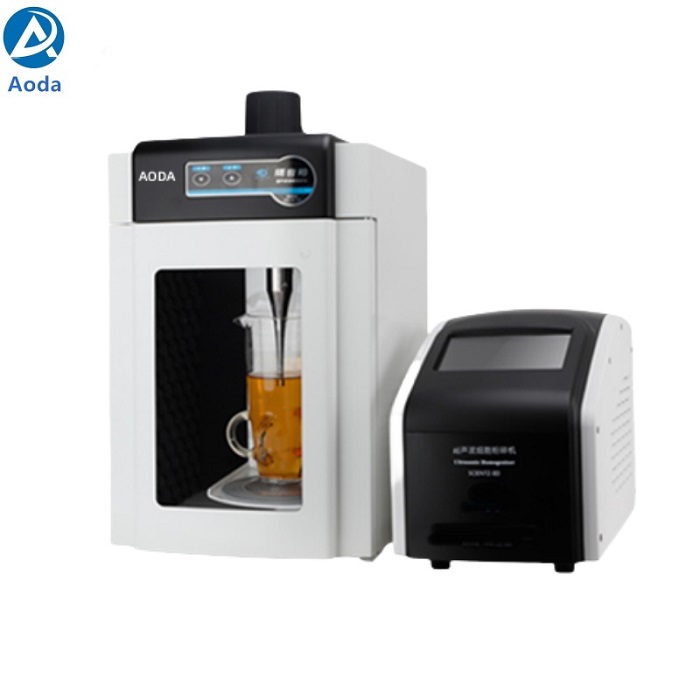

The JY-N series Ultrasonic Homogenizer is a multifunctional and multi-purpose instrument that uses the cavitation effect of ultrasound to process experimental samples. It is suitable for processing samples of different volumes (select the corresponding model and probe according to different volumes). It has the advantages of continuously adjustable ultrasonic time and power, and can crush various animal and plant tissues, cells, and bacteria. It can also be used for emulsification, separation, dispersion, extraction, and acceleration of chemical reactions. It is widely used in the fields of life science, material science, and environmental protection.

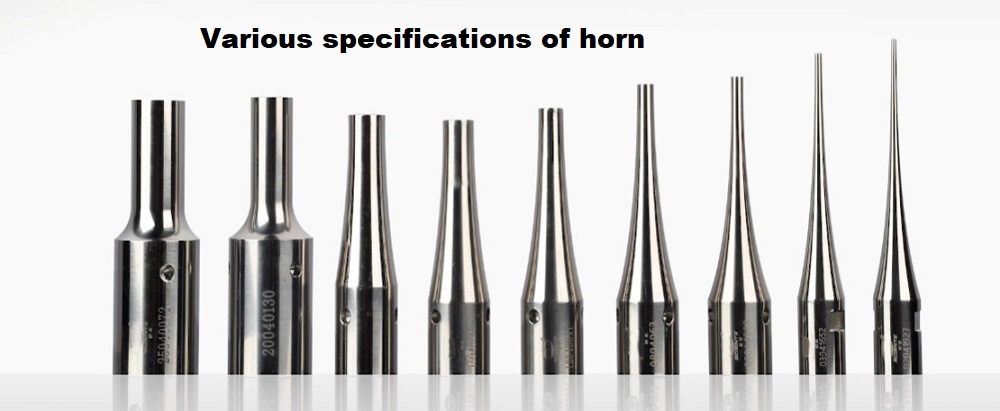

Based on the cavitation effect of ultrasound in liquid, the transducer transmits electrical energy through the horn to generate high-intensity shear force in the liquid on the top of the tool head, forming a high-frequency alternating water pressure, and using cavity expansion and explosion to crush cells. In addition, the violent disturbance caused by ultrasound in the liquid can cause particles to have a large acceleration, so that they collide with each other or with the wall to achieve the effect of crushing, emulsification and separation.

Bioengineering

Cells, bacteria, viruses, spores and other cell structures are broken; Preparation of DNA fragments in high-throughput sequencing and chromatin immunoprecipitation (non-contact crushing);

Food engineering

Ultrasonic homogenization of beverages; Alcoholization of wine - aging technology; Acceleration of dissolution and chemical reactions, such as for oil processing;

Environmental engineering

Homogenization of soil and rock samples; Study of the structural and physical characteristics of rocks;

Biopharmaceuticals

Dispersion of injectable pharmaceutical substances; Dispersion and extraction of Chinese herbal medicines; Cracking, emulsification, homogenization and crushing of particles such as carbon nanotubes and rare earth

materials;
