Ultrasonic cell disruptor for large volume samples

Ultrasonic cell disruptor for large volume samples

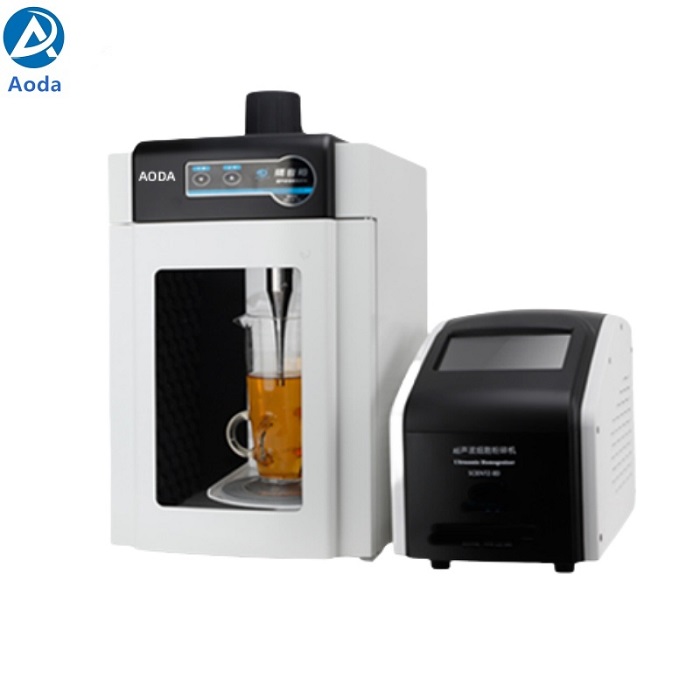

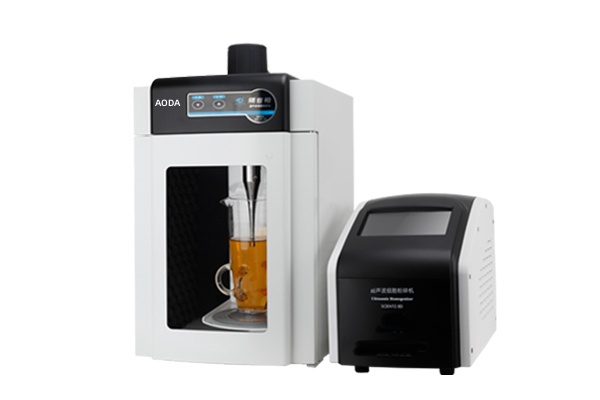

JY99-IIDN Ultrasonic cell disruptor is a multifunctional and multi-purpose instrument that uses ultrasound to produce cavitation effect in liquids. It has the advantages of continuously adjustable ultrasonic time and power, and a temperature alarm function to prevent sample overheating. Power 1800W (1%-100%), crushing capacity 50-1200ml, random amplitude 25mm, optional amplitude 20mm, 28mm. It is an ultrasonic cell crusher suitable for large-volume samples.

The JY-N series Ultrasonic cell disruptor is a multifunctional and multi-purpose instrument that uses the cavitation effect of ultrasound to process experimental samples. It is suitable for processing samples of different volumes (select the corresponding model and probe according to different volumes). It has the advantages of continuously adjustable ultrasonic time and power, and can crush various animal and plant tissues, cells, and bacteria. It can also be used for emulsification, separation, dispersion, extraction, and acceleration of chemical reactions. It is widely used in the fields of life sciences, material sciences, and environmental protection.

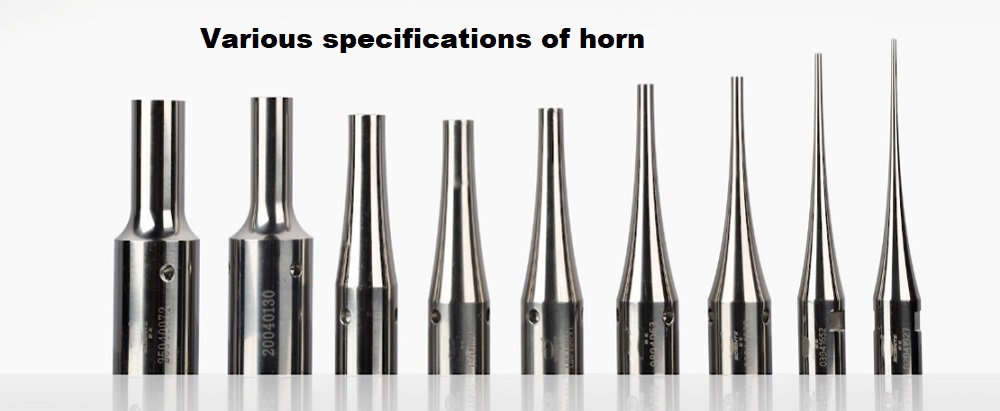

The Ultrasonic cell disruptor is based on the cavitation effect of ultrasound in liquid. The transducer transmits electrical energy through the horn to generate high-intensity shear force in the liquid on the top of the tool head, forming a high-frequency alternating water pressure, and using cavity expansion and explosion to crush the cells. In addition, the violent disturbance caused by ultrasound in the liquid causes the particles to have a large acceleration, so that they collide with each other or with the wall of the device to achieve the effect of crushing, emulsification and separation.

Bioengineering

Cells, bacteria, viruses, spores and other cell structures are broken; Preparation of DNA fragments in high-throughput sequencing and chromatin immunoprecipitation (non-contact crushing);

Food engineering

Ultrasonic homogenization of beverages; Alcoholization of wine - aging technology; Acceleration of dissolution and chemical reactions, such as for oil processing;

Environmental engineering

Homogenization of soil and rock samples; Study of the structural and physical characteristics of rocks;

Biopharmaceuticals

Dispersion of injectable pharmaceutical substances; Dispersion and extraction of Chinese herbal medicines; Cracking, emulsification, homogenization and crushing of particles such as carbon nanotubes and rare earth materials;
