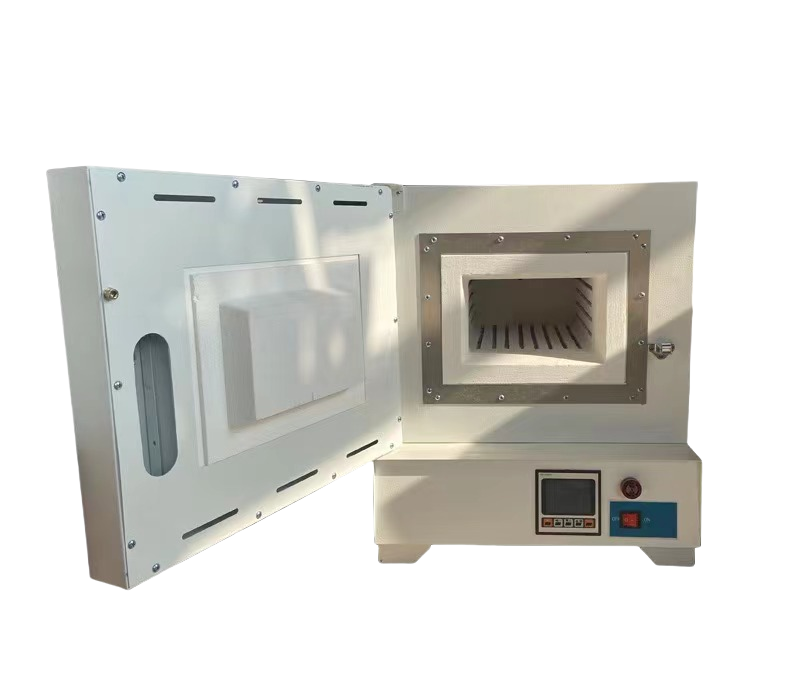

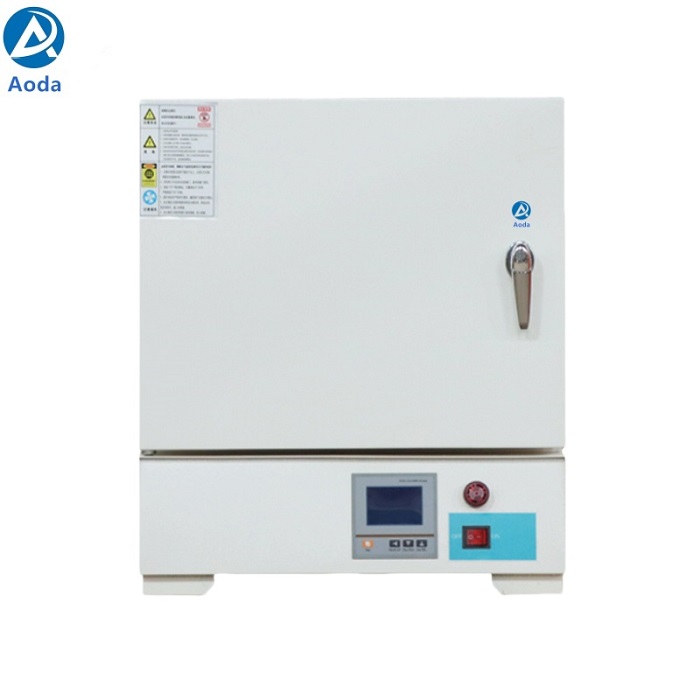

AODA Ceramic Fiber Muffle Furnace
The ceramic fiber muffle furnace adopts a ceramic fiber furnace, and the heating element adopts multi-faceted heating, so the temperature distribution in the cranial cavity is uniform....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
AODA Ceramic Fiber Muffle Furnace
The ceramic fiber muffle furnace adopts a ceramic fiber furnace chamber, and the heating element adopts multi-faceted heating. The temperature distribution in
the cranial cavity is uniform, the heating speed is fast, the energy saving is significant, and the working efficiency is high, which can greatly improve the
experimental environment of the staff. The energy saving rate is 40%, and it has reached the C-class furnace standard after testing.
The ceramic fiber muffle furnace adopts a liquid crystal program control instrument with high brightness and wide window digital display, and the indication is
clear and intuitive. It has a 30-degree program programming setting, which is suitable for complex experimental processes, and microcomputer intelligent control,
which solves the problems of temperature overshoot and other drawbacks, and has a good temperature control effect. After setting the temperature, the
instrument automatically controls the heating, constant temperature, and accurate and stable temperature control. Safety protection measures: fault sound and
light alarm, over-temperature sound and light alarm, and automatic cutting off of heating output. Open the door to stop heating.
Ceramic Fiber Muffle Furnace | |||||||
Model | AZ-2.5-10TP (2.5-12) | AZ-4-10TP | AZ-5-12TP | AZ-8-10TP | AZ-10-12TP | AZ-12-10TP | AZ-12-12TP |
Temperature range | 100~ 1000℃ (1200℃) | 100 ~ 1000℃ | 100 ~ 1200℃ | 100 ~ 1000℃ | 100 ~ 1200℃ | 100 ~ 1000℃ | 100 ~ 1200℃ |
Volatility | ±2℃ | ±2℃ | ±2℃ | ±2℃ | ±2℃ | ±2℃ | ±2℃ |
Display accuracy | 1℃ | 1℃ | 1℃ | 1℃ | 1℃ | 1℃ | 1℃ |
Furnace size(D*W*H)mm | 80*120*200 | 120*200*300 | 120*200*300 | 160*250*400 | 160*250*400 | 200*300*500 | 200*300*500 |
Heating speed | 1---30℃/min | ||||||
Total power | 2.5kw | 4kw | 5kw | 8kw | 10kw | 12kw | 12kw |
Power supply | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | 380V, 50Hz | 380V, 50Hz | 380V, 50Hz | 380V, 50Hz |
